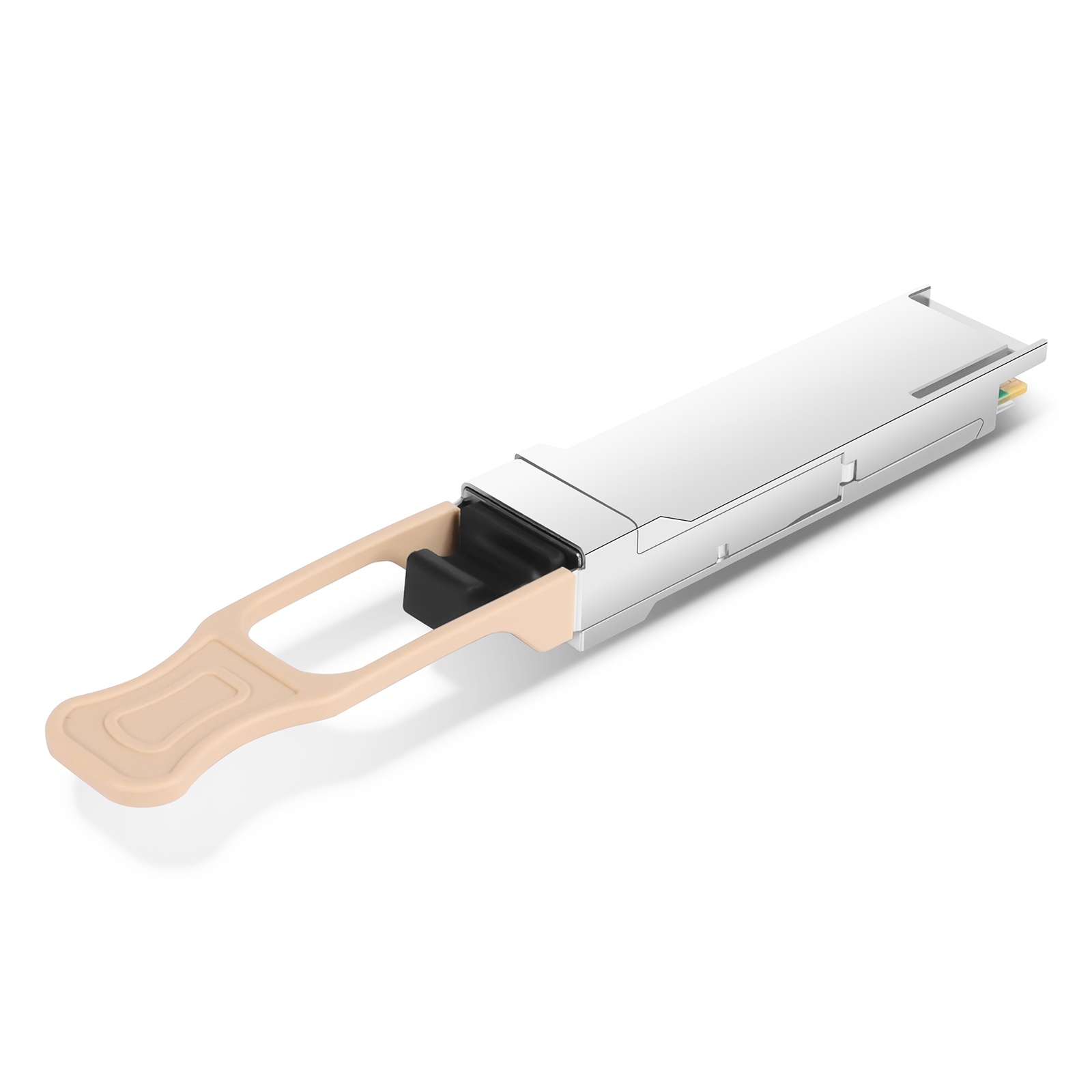

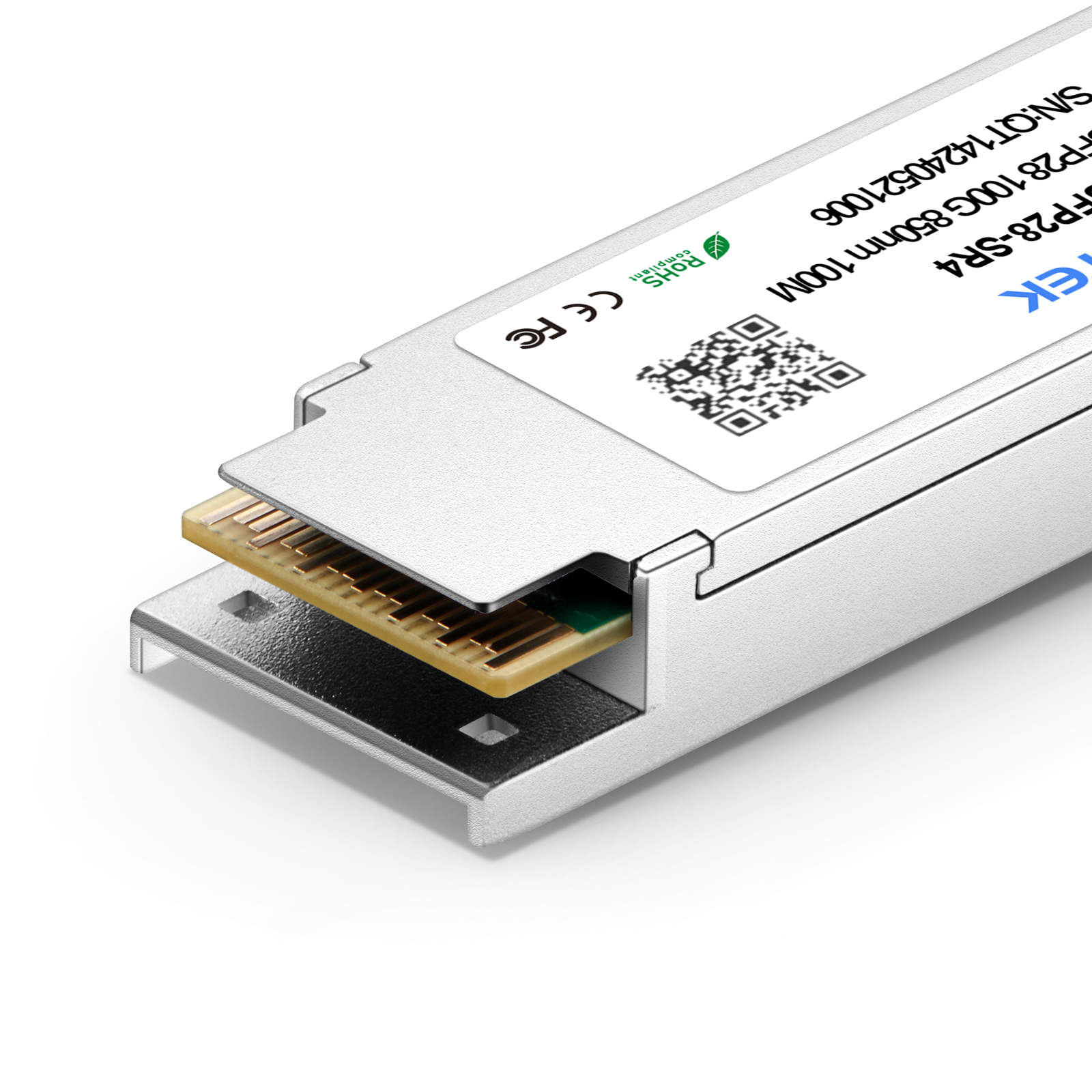

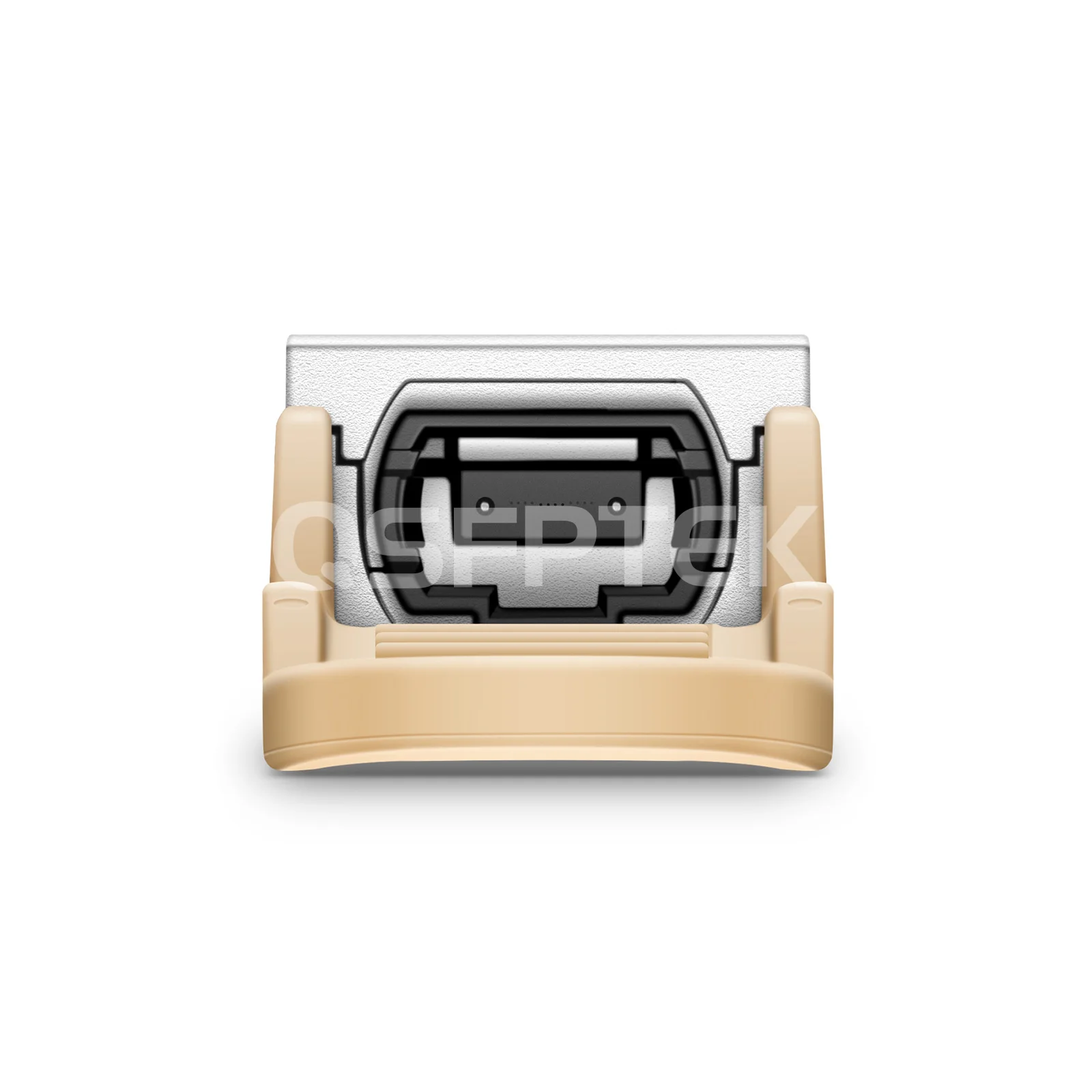

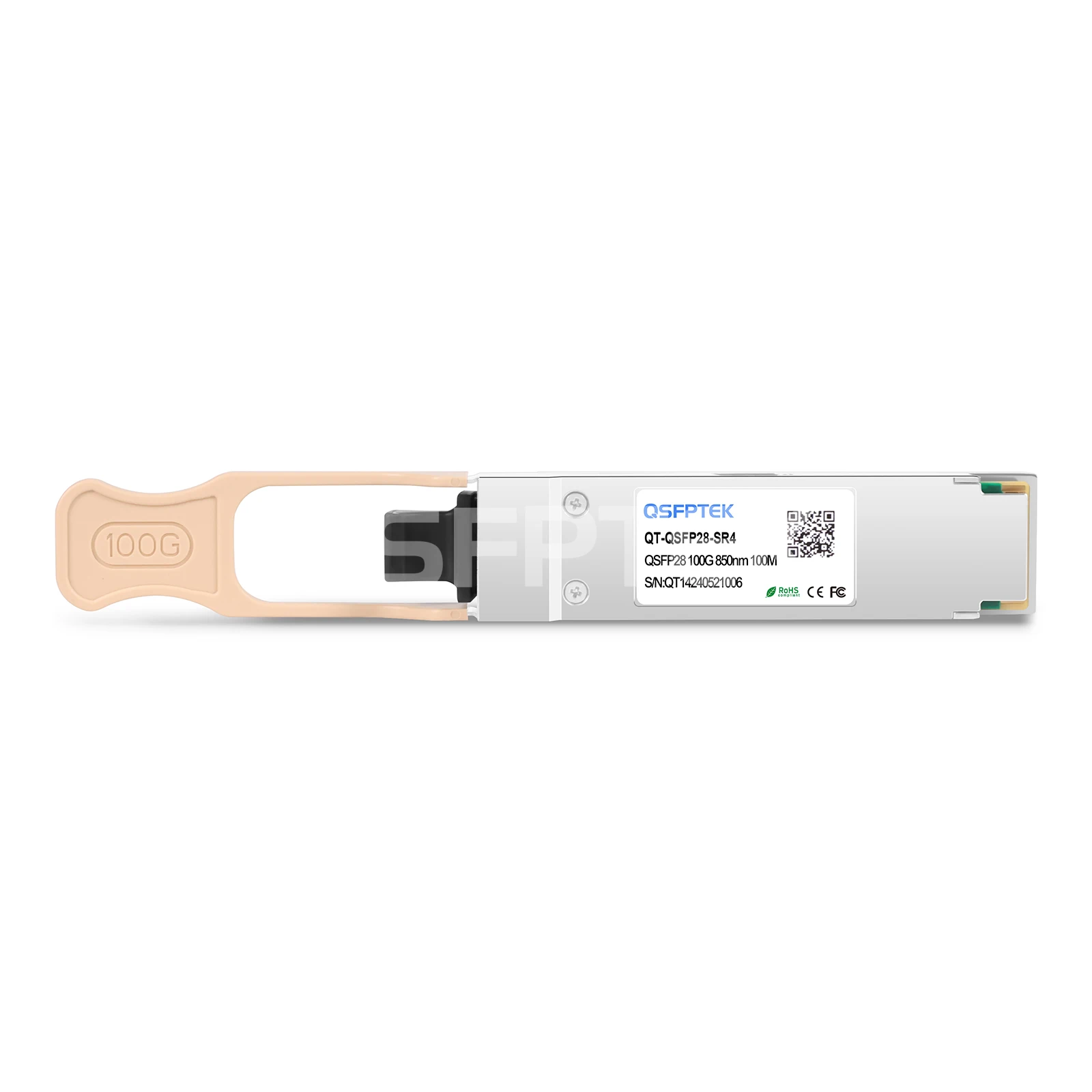

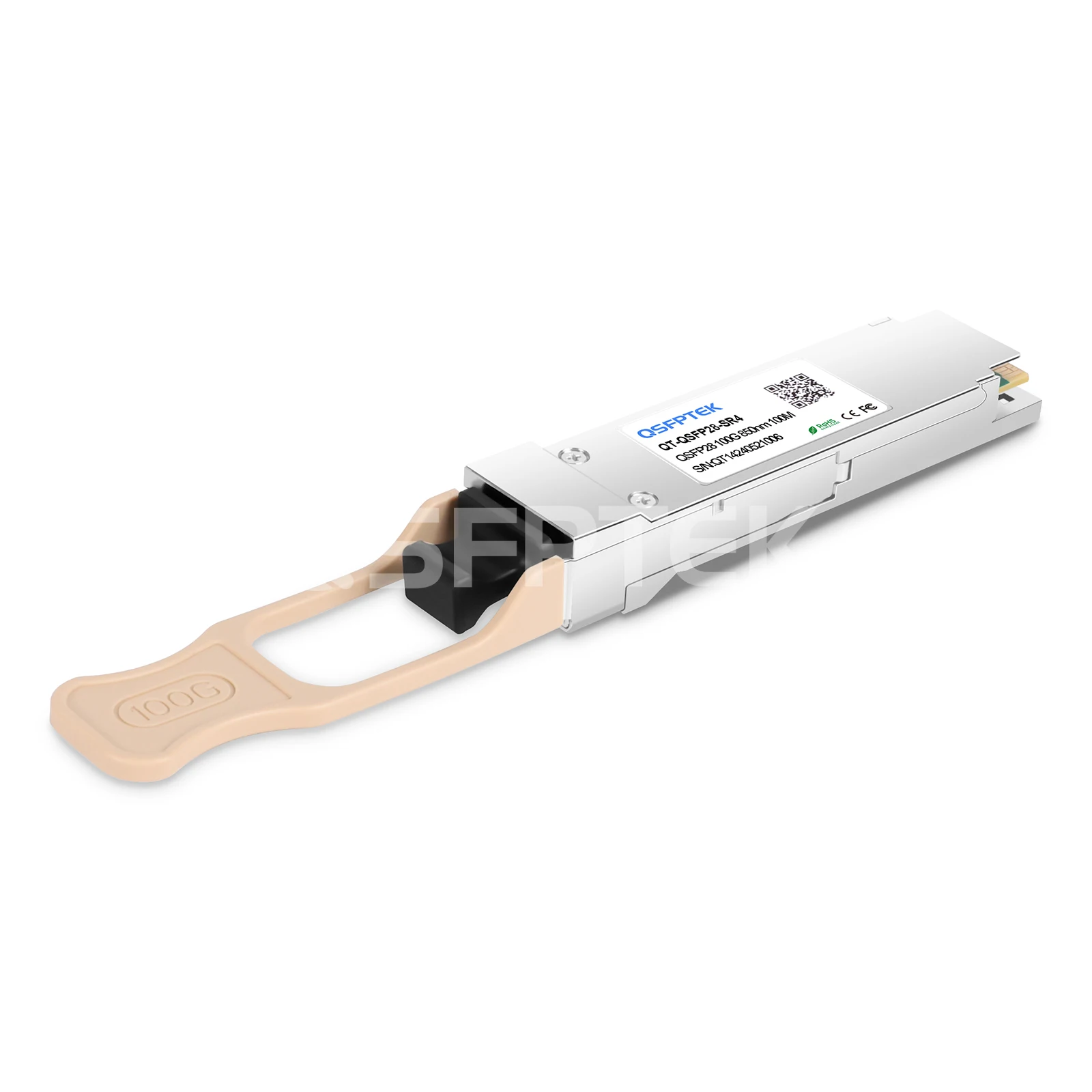

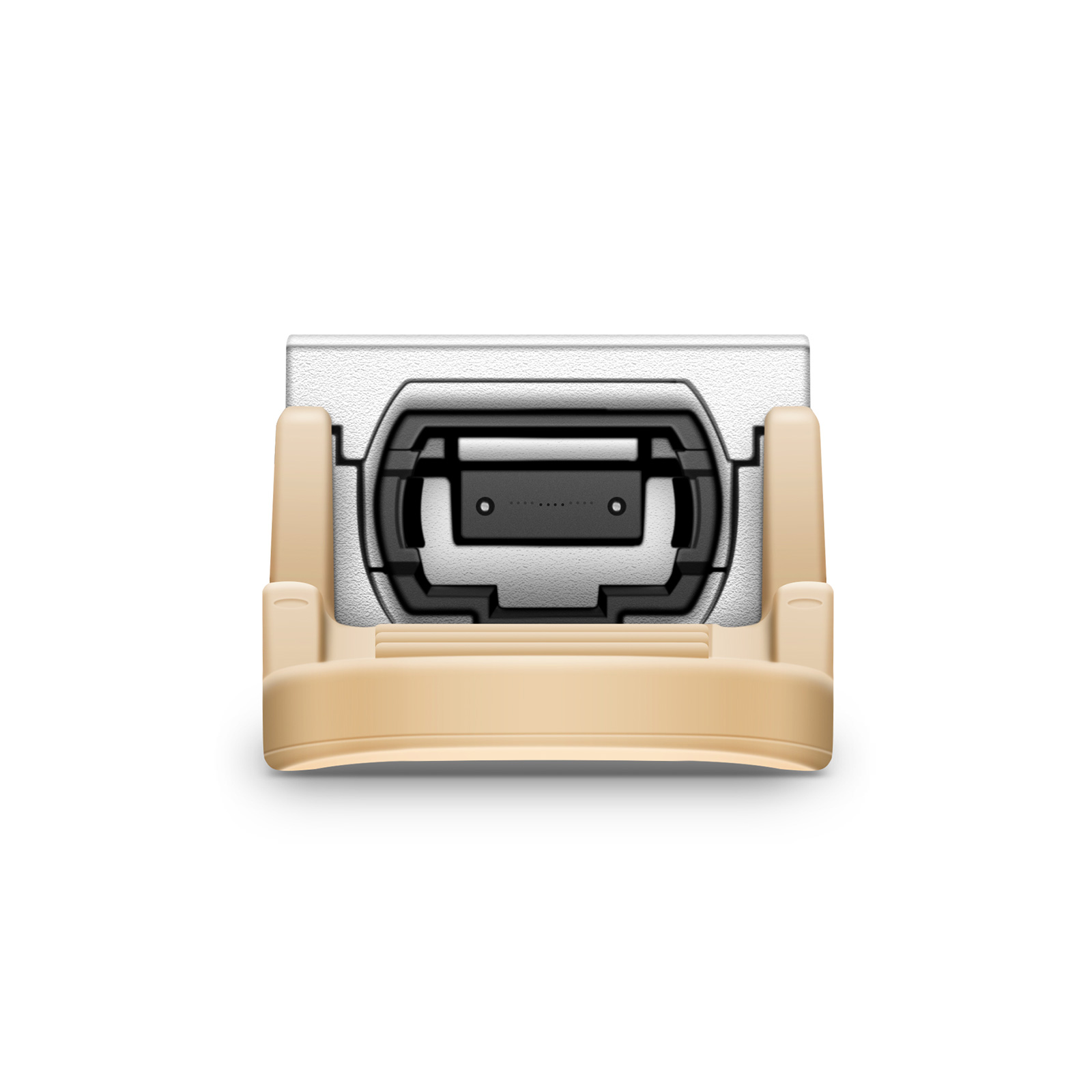

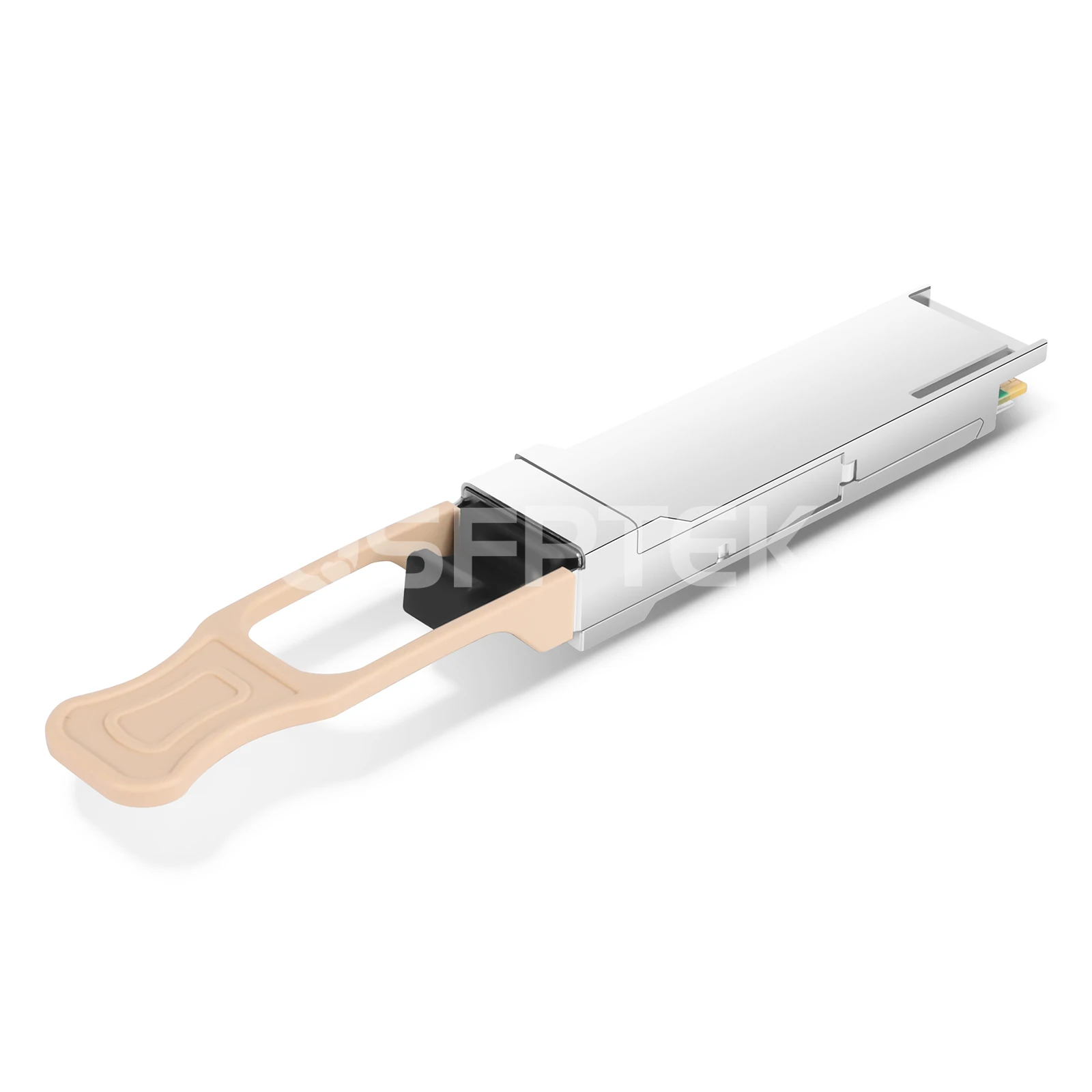

    Juniper Networks QSFP-100GBASE-SR4 Compatible 100GBASE-SR4 QSFP28 850nm 100m MTP/MPO-12 MMF DDM Optical Transceiver Module

    Product No: 101227
    160 Reviews
    14.2K Sold
    US$ 35.90  US$ 59.90
    Compatible
    Transceivers type
    1167 in real-time stock, 23 Jun, 2026

    Free Shipping over US$ 79.8

    Global warehouses in stock

    30-day Return and Refund

    5-Year Warranty 30-Day Returns 90-Day Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. Rate: 100G; Connector: MTP/MPO; with DDM
2. VCSEL+PIN; Low Power Consumption ≤2.5W
3. For 4 x 25 Gigabit Ethernet, 100 Gigabit Ethernet
4. Compatible with 100+ Vendors
5. Hot Pluggable QSFP28 MSA Compliant
    See more

    Specifications

    Juniper QSFP-100GBASE-SR4 Compatible 100GBASE-SR4 QSFP28 Optical Transceiver Module (MMF, 850nm, 100m, MTP/MPO, DDM)



    The Juniper Networks QSFP-100GBASE-SR4 compatible optical transceiver module with MTP/MPO-12 male connectors reaches a link up to 100m over OM4 (70m@OM3). It is verified to interoperate with original Juniper switches, including the EX4300/4400/4650, QFX5110/5120/5130/5200/5230/5700, etc. This 100G SR4 QSFP28 optics also supports breakout to 4x25GBASE-SR SFP28 via MTP/MPO-8 to 4xLC duplex OM3/OM4 breakout cables. QSFPTEK manufactured 100GBASE-SR4 QSFP28 transceiver module is compliant with IEEE 802.3bm, QSFP28 MSA standard. Besides, DDM (digital diagnostics monitoring) function is supported on the 100G fiber optic transceiver to achieve real-time operating parameters monitoring. With these features, this 100G QSFP28 transceiver is widely applied in data centers, campus networks, the enterprise core layer, etc.



    Part Number:

    QSFP-100GBASE-SR4

    Vendor Name:

    QSFPTEK

    Form Factor:

    QSFP28

    Data Rate:

    100Gbps

    Wavelength:

    850nm

    Distance:

    100m@OM4/70m@OM3

    Connector:

    MTP/MPO-12 Male

    Cable Type:

    OM4/OM3 MMF

    Transmitter:

    VCSEL 850nm

    Receiver Type:

    PIN

    TX Power:

    -8.4~+2.4dBm

    Receiver Sensitivity:

    <-10.3dBm

    Power Consumption:

    P≤2.5W

    Modulation Format:

    NRZ

    DDM:

    Support

    Bit Error Ratio (BER):

    1.00E-12

    Protocols:

    IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636, CPRI, eCPRI

    Warranty:

    5 Years
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Features

    • 1. High Reliablility and Best Price
      Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
    • 2. Wide Application Scenarios
      Fully compatible with almost all Juniper devices. Ideal for data centers, campus network, enterprise core layer, etc.
    • 3. Protocols
      Compliant with IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636, CPRI, eCPRI.
    • 4. Quality Certifications
      Backed by CE, FCC, ROSH, ISO9001.

    Applications

    Scenario 1: 100G Switch to 100G Switch Direct Connectivity

    QT-QSFP28-SR4 Scenario 1 100G Switch to 100G Switch Direct Connectivity





    Scenario 2: 100G Switch to 100G NIC Direct Connectivity

    QT-QSFP28-SR4 Scenario 2 100G Switch to 100G NIC Direct Connectivity



    Scenario 3: 100G to 4x 25G Breakout Connectivity

    QT-QSFP28-SR4 Scenario 3 100G to 4x 25G Breakout Connectivity



    Scenario 4: 100G to 4x 25G Breakout Connectivity with NIC

    QT-QSFP28-SR4 Scenario 4 100G to 4x 25G Breakout Connectivity with NIC



    Product details

    Various Switch Tests



    Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.



    Switch tests





    Tested in The Host Device to Prove Interoperability



    Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.



    QSFPTEK Test Rack





    Comprehensive Testing



    Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.



    QSFPTEK Test Devices





    100G QSFP28 Model Contrast Table



    Part Number

    QT-QSFP28-SR4

    QT-QSFP28-PSM4

    QT-QSFP28-IR4

    QT-QSFP28-LR4

    QT-QSFP28-CWDM-LR4

    QT-QSFP28-ER4 (Rx SOA)

    QT-QSFP28-ZR4


    Wavelength

    850nm

    1310nm

    1271~1331nm

    1310nm

    1271~1331nm

    1310nm

    1310nm

    Max Distance

    100m

    500m

    2km

    10km

    10km

    40km

    80km

    Cable Type

    OM3/OM4 MMF

    OS2 SMF

    OS2 SMF

    OS2 SMF

    OS2 SMF

    OS2 SMF

    OS2 SMF

    Connector

    MPO/MTP-12

    MPO/MTP-12

    LC Duplex

    LC Duplex

    LC Duplex

    LC Duplex

    LC Duplex

    Tx Power(dBm)

    -8.4~+2.4

    -9.4~+2

    -6.5~+2.5

    -4.3~+4.5

    -6.5~+2.5

    -2.9~+4.5

    +2~+7

    Rx Sensitivity(dBm)

    -10.3

    -12.66

    -11.5

    -10.6

    -11.5

    -20.9

    -27

    Max Power Consumption

    2.5W

    3.5W

    3.5W

    4W

    3.5W

    5W

    5.5W

    Source

    VCSEL+PIN

    DFB+PIN

    CWDM DFB+ PIN

    EML+PIN

    CWDM DFB +PIN

    4x EML+SOA+PIN

    EML+SOA+PIN

    Operating Temperature

    0~70°C

    0~70°C

    0~70°C

    0~70°C

    -40~85°C (Available)

    0~70°C

    0~70°C

    -20~85°C (Available)

    0~70°C

    -40~85°C (Available)



    Questions & Answers

    • ALL (26)

    Customer Reviews

    Write a Review
    Sign in to write a review
    Write a Review

    5 stars

    146 Reviews

    4 stars

    11 Reviews

    3 stars

    3 Reviews

    2 stars

    0 Reviews

    1 stars

    0 Reviews

    Reviews with images

    See all photos

    Read reviews that mention

    • ALL (3)
    • QSFPTEK Box (1)
    • Matched Cables (1)
    • Plug-and-Play (1)
    • High Performance (1)
    • Customer Support (1)
    • Compatibility (3)
    • Keith B. Canada
      2025-10-28

      Been using this 100G SR4 QSFP28 module in my Juniper QFX5130 for a couple weeks now. Works like a charm – plugged it in and it just worked. Solid performance, no hiccups. Really happy with the purchase, eh!

      Transceivers typeQSFP-100GBASE-SR4

      CompatibleJuniper

      Verified Purchase

      Helpful

      0

    • Dylon A. United States of America
      2025-09-26

      Urgently needed a batch of 100G SR4 modules for our company project. When we inquired about them on the official website, we received full assistance from Wendy, our customer service representative. She not only quickly confirmed compatibility with my Juniper MX304, but also provided detailed MPO patch cord selection recommendations. The modules passed all tests immediately upon arrival, resolving our urgent need. They are a truly professional and reliable partner!

      Transceivers typeQSFP-100GBASE-SR4

      CompatibleJuniper

      Verified Purchase

      Helpful

      0

    • José France
      2025-08-22

      J'ai acheté une paire de SR4 et ils fonctionnent très bien sur mon EX4400-48T. J'ai aussi acheté leur carte de codage, car j'ai plusieurs types d'interrupteurs, ce qui est pratique pour les réutilisations ultérieures. C'est génial!

      Transceivers typeQSFP-100GBASE-SR4

      CompatibleJuniper

      Verified Purchase

      Helpful

      0

    Resources

    • PDF Document
      QT-QSFP28-SR4 Datasheet.pdf
    • PDF Document
      Transceiver Module User Guide.pdf
