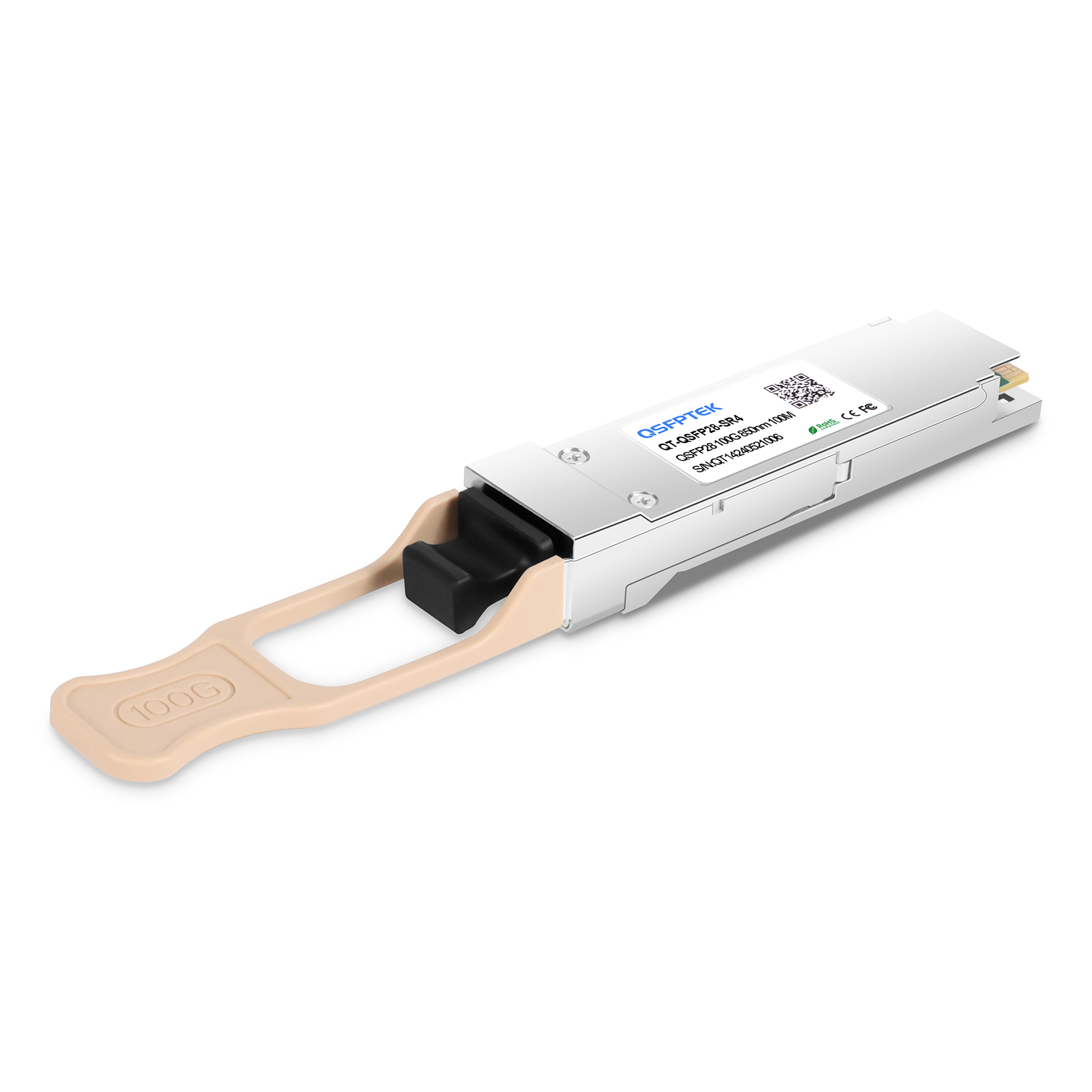

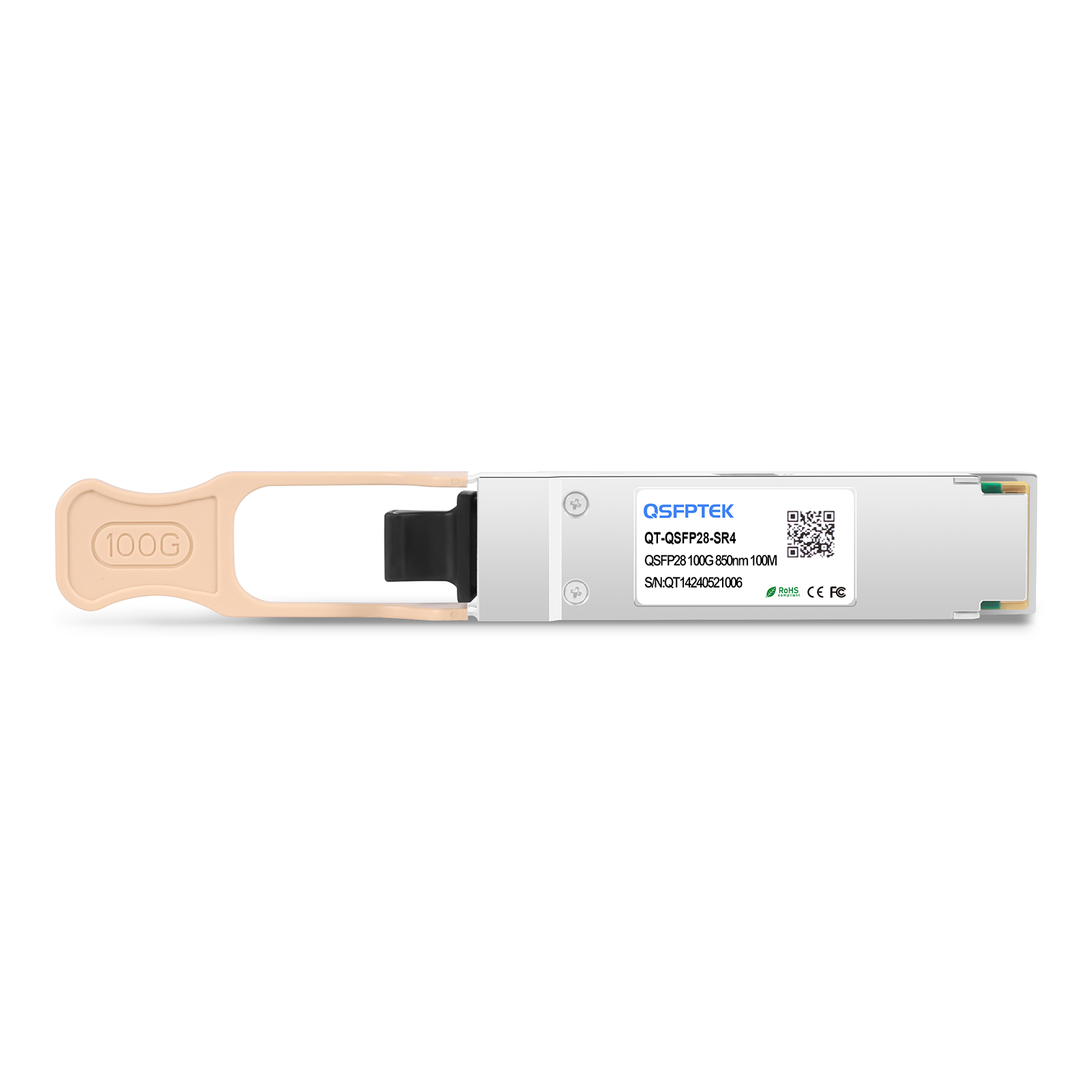

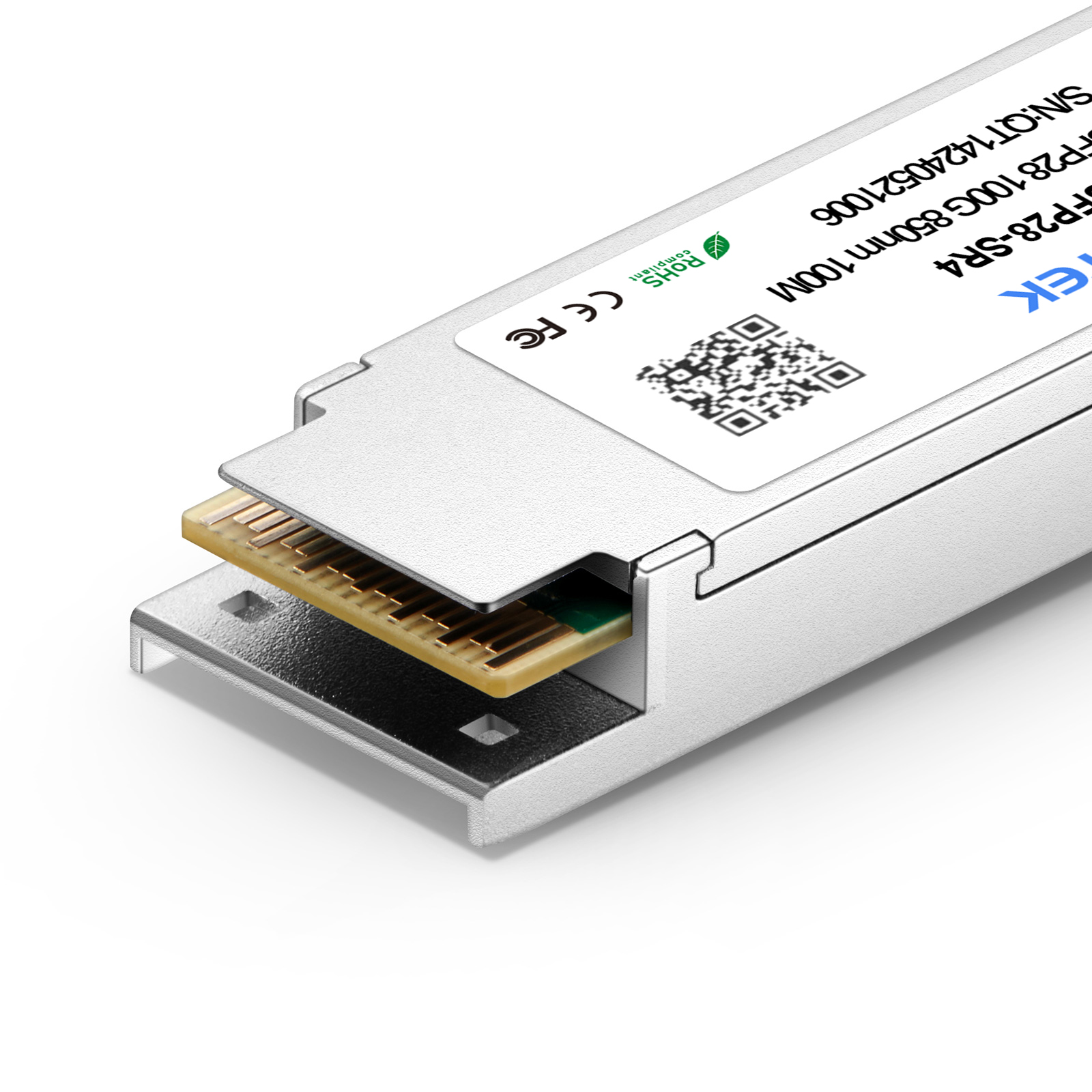

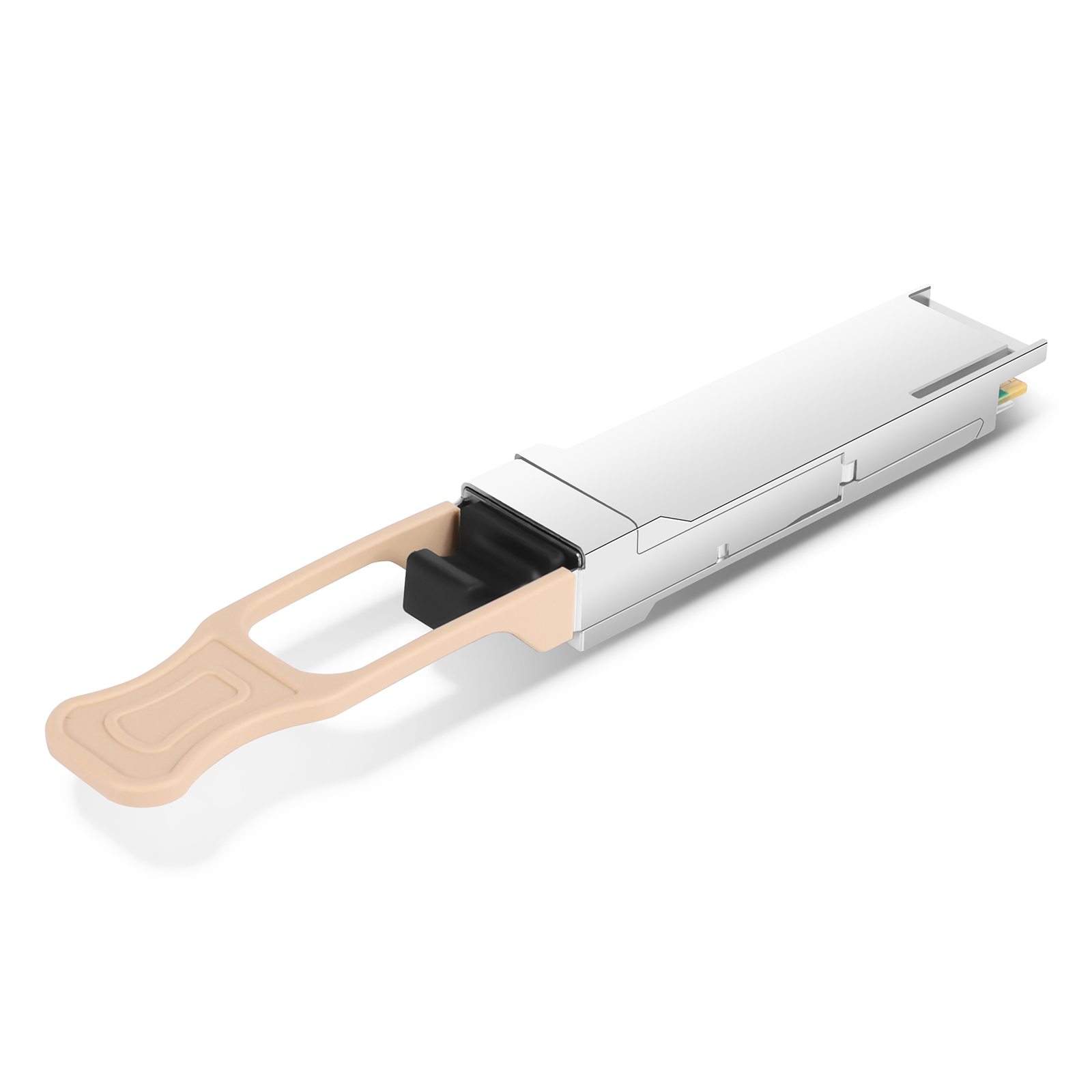

Brocade 100G-QSFP28-SR4 Compatible 100GBASE-SR4 QSFP28 850nm 100m Optical Transceiver Module

Product No :11373
US$ 39.90  US$ 59.90
3557 in real-time stock, 18Jul, 2024

Free Shipping over US$ 79.8

US/EU Warehouses in stock

14-day Return and Refund

;jsessionid=8AB32C6F8BD333B1B8A411176D3DDF4D
-
+
1. Rate: 100G; Connector: MTP/MPO; with DDM
2. VCSEL+PIN; Low Power Consumption ≤3.5W
3. Applied in Campus Network, Data Center and Enterprise Core Layer
4. Compatible with 100+ Vendors
5. Hot Pluggable QSFP28 MSA Compliant
See more

Specifications

Brocade 100G-QSFP28-SR4 Compatible 100GBASE-SR4 QSFP28 Optical Transceiver Module (MMF, 850nm, 100m, MTP/MPO, DDM)

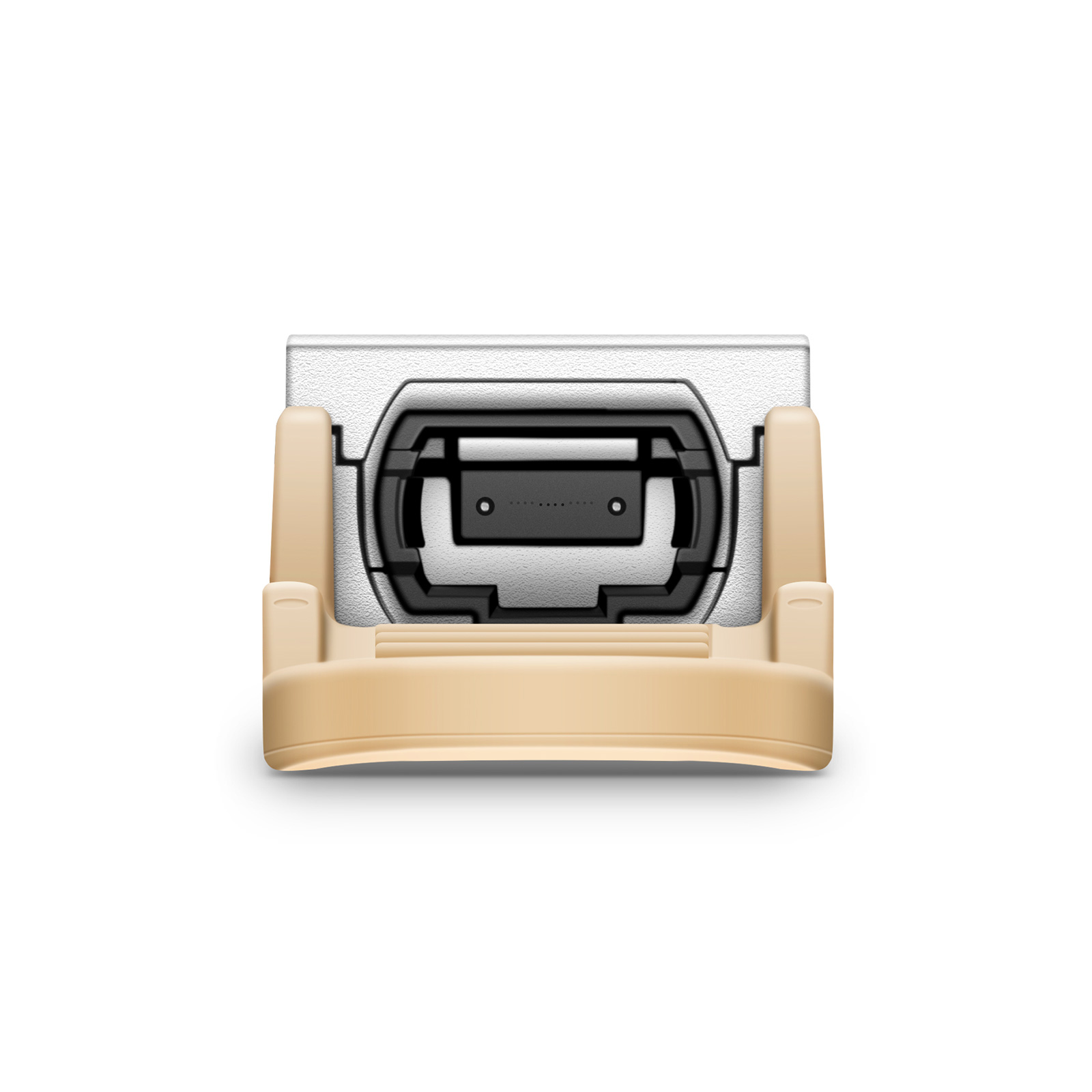

The Brocade 100G-QSFP28-SR4 compatible optical transceiver module is designed with MTP/MPO-12 male connectors, reaching a link up to 100m over OM4 (70m@OM3). QSFPTEK manufactured 100GBASE-SR4 QSFP28 transceiver module is compliant with IEEE 802.3bm, QSFP28 MSA standard. Besides, DDM (digital diagnostics monitoring) function is supported on the 100G fiber optic transceiver to achieve real-time operating parameters monitoring. With these features, this 100G QSFP28 transceiver is widely applied in data centers, campus networks, the enterprise core layer, etc.



Part Number:

QSFP28-100G-SR4

Vendor Name:

QSFPTEK

Form Factor:

QSFP28

Data Rate:

100Gbps

Wavelength:

850nm

Distance:

100m@OM4/70m@OM3

Connector:

MTP/MPO-12 Male

Cable Type:

OM4/OM3 MMF

Transmitter:

VCSEL 850nm

Receiver Type:

PIN

TX Power:

-8.4~+2.4dBm

Receiver Sensitivity:

<-10.3dBm

Power Consumption:

P≤3.5W

Modulation Format:

NRZ

DDM:

Support

Bit Error Ratio (BER):

1.00E-12

Protocols: I

EEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636, CPRI, eCPRI

Warranty:

5 Years

Quality Testing Program
Quality Certifications

Features

  • 1. High Reliablility and Best Price
    Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
  • 2. Wide Application Scenarios
    Fully compatible with almost all Brocade devices. Ideal for data centers, campus network, enterprise core layer, etc.
  • 3. Protocols
    Compliant with IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636, CPRI, eCPRI.
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.

Applications

Scenario 1: 100G Switch to 100G Switch Direct Connectivity

Related Products:

S7600-48X8C, 48-Port Ethernet L3+ Data Center Switch, 48 x10Gb SFP+, 8 x100Gb QSFP28, Support MLAG

S7600-24Y4C, 24-Port Ethernet L3+ Switch, 24 x25GE SFP28, with 4 x100GE QSFP28 Uplinks, Support MLAG

5m (16ft) MTP-12 (Female) to MTP-12 (Female) OM4 Trunk Cable, 12 Fibers, Type B, Plenum (LSZH)






Scenario 2: 100G Switch to 100G NIC Direct Connectivity


Related Products:

S7600-48X8C, 48-Port Ethernet L3+ Data Center Switch, 48 x10Gb SFP+, 8 x100Gb QSFP28, Support MLAG

Intel E810-CAM2 Based Network Interface Card, 100G Dual Port QSFP28, PCIe 4.0 X 16, Half & Full Bracket

5m (16ft) MTP-12 (Female) to MTP-12 (Female) OM4 Trunk Cable, 12 Fibers, Type B, Plenum (LSZH)






Scenario 3: 100G to 4x 25G Breakout Connectivity


Related Products:

S7600-48X8C, 48-Port Ethernet L3+ Data Center Switch, 48 x10Gb SFP+, 8 x100Gb QSFP28, Support MLAG

S7600-24Y4C, 24-Port Ethernet L3+ Switch, 24 x25GE SFP28, with 4 x100GE QSFP28 Uplinks, Support MLAG

Cisco SFP-25G-SR-S Compatible 25GBASE-SR SFP28 850nm 100M optical transceiver Module

5m (16ft) MTP Female to 4 LC UPC Duplex 8 Fibers Type B Plenum (LSZH) OM4 50/125 Multimode Breakout Cable






Scenario 4: 100G to 4x 25G Breakout Connectivity with NIC

Related Products:

S7600-48X8C, 48-Port Ethernet L3+ Data Center Switch, 48 x10Gb SFP+, 8 x100Gb QSFP28, Support MLAG

Intel E810-CAM1 Based Network Interface Card, 25G Quad-Port SFP28, PCIe 4.0 X 16, Full Height

Cisco SFP-25G-SR-S Compatible 25GBASE-SR SFP28 850nm 100M optical transceiver Module

5m (16ft) MTP Female to 4 LC UPC Duplex 8 Fibers Type B Plenum (LSZH) OM4 50/125 Multimode Breakout Cable



Product details

Various Switch Tests



Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.



transceiver compatibility tests






Tested in The Host Device to Prove Interoperability



Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.








Comprehensive Testing



Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.








100G QSFP28 Model Contrast Table
