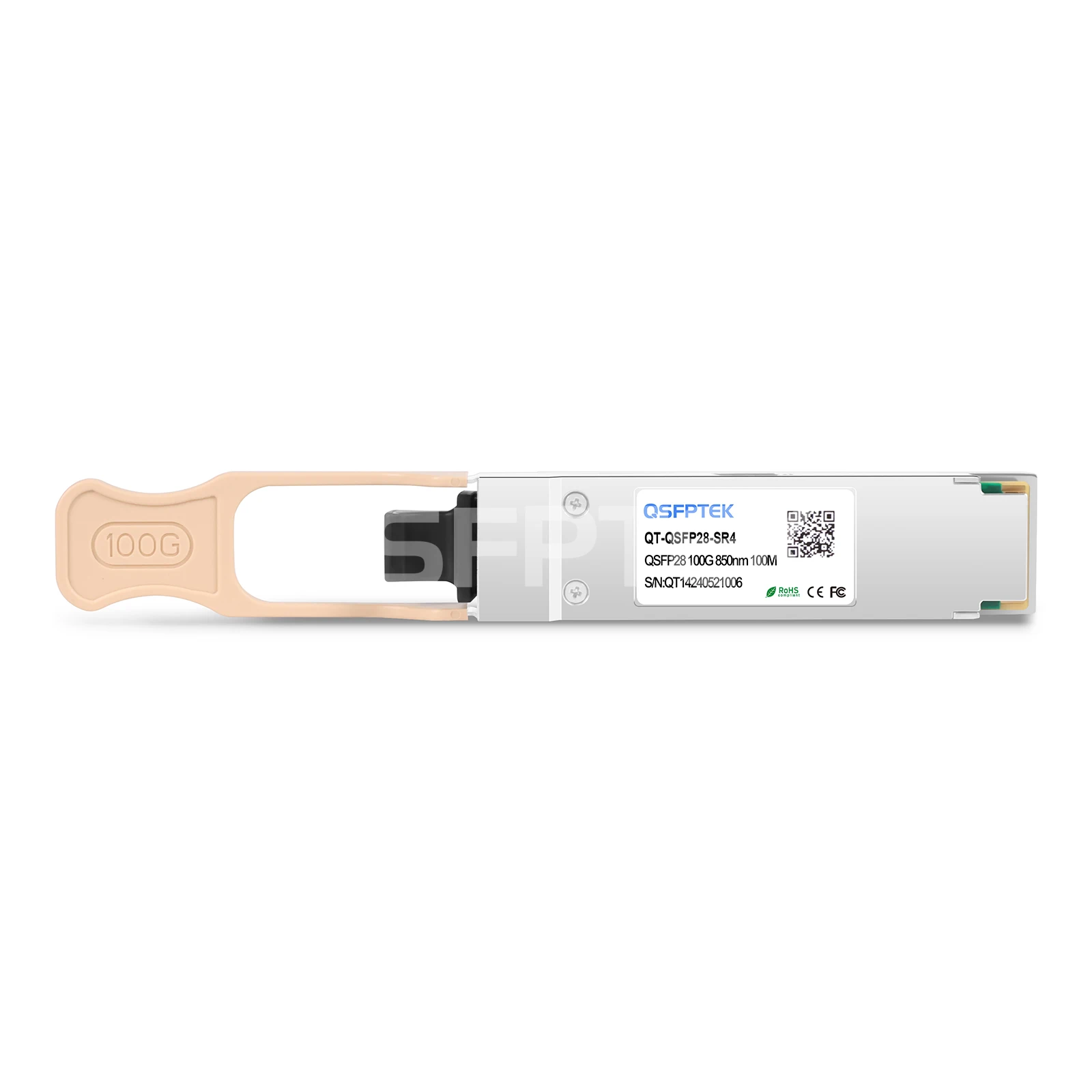

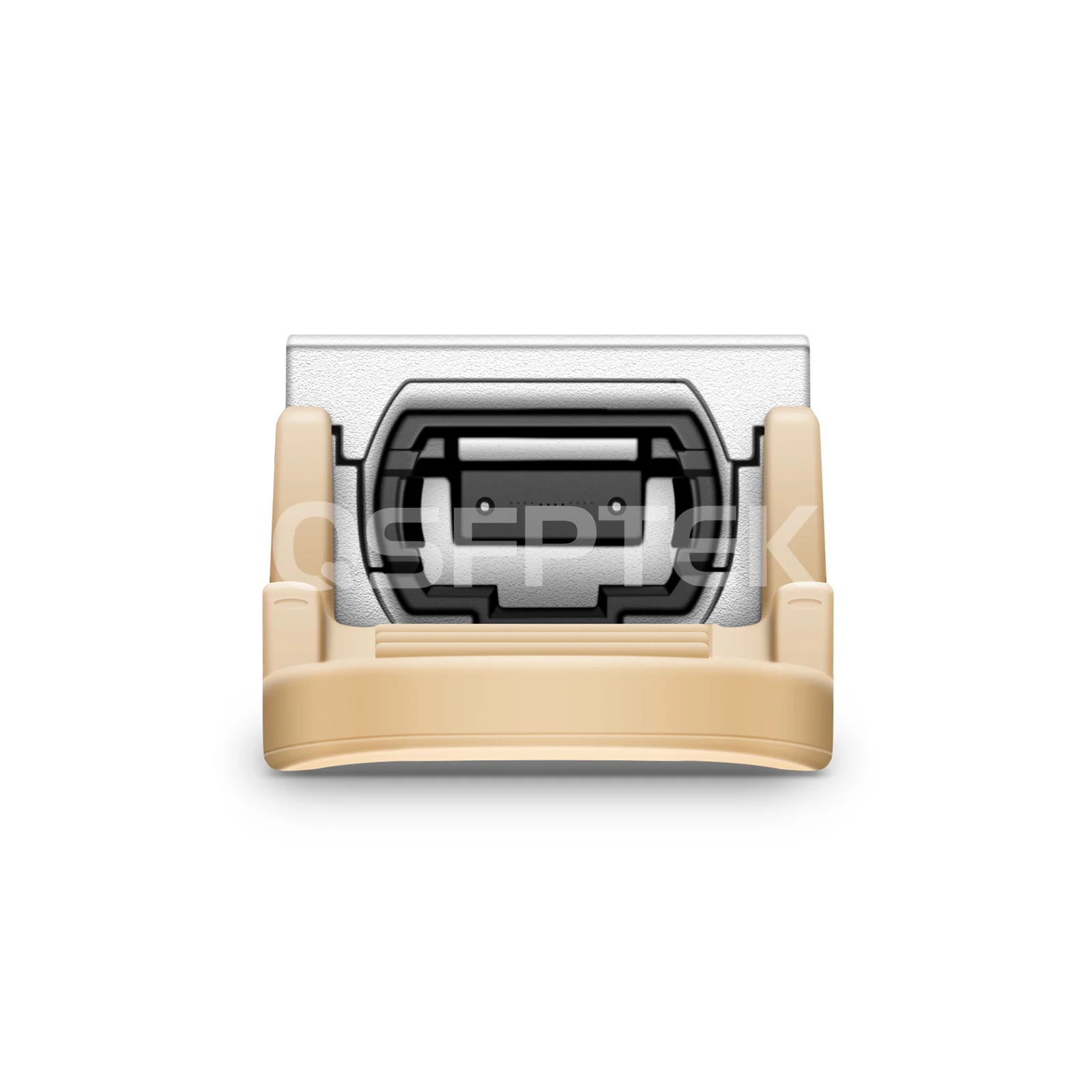

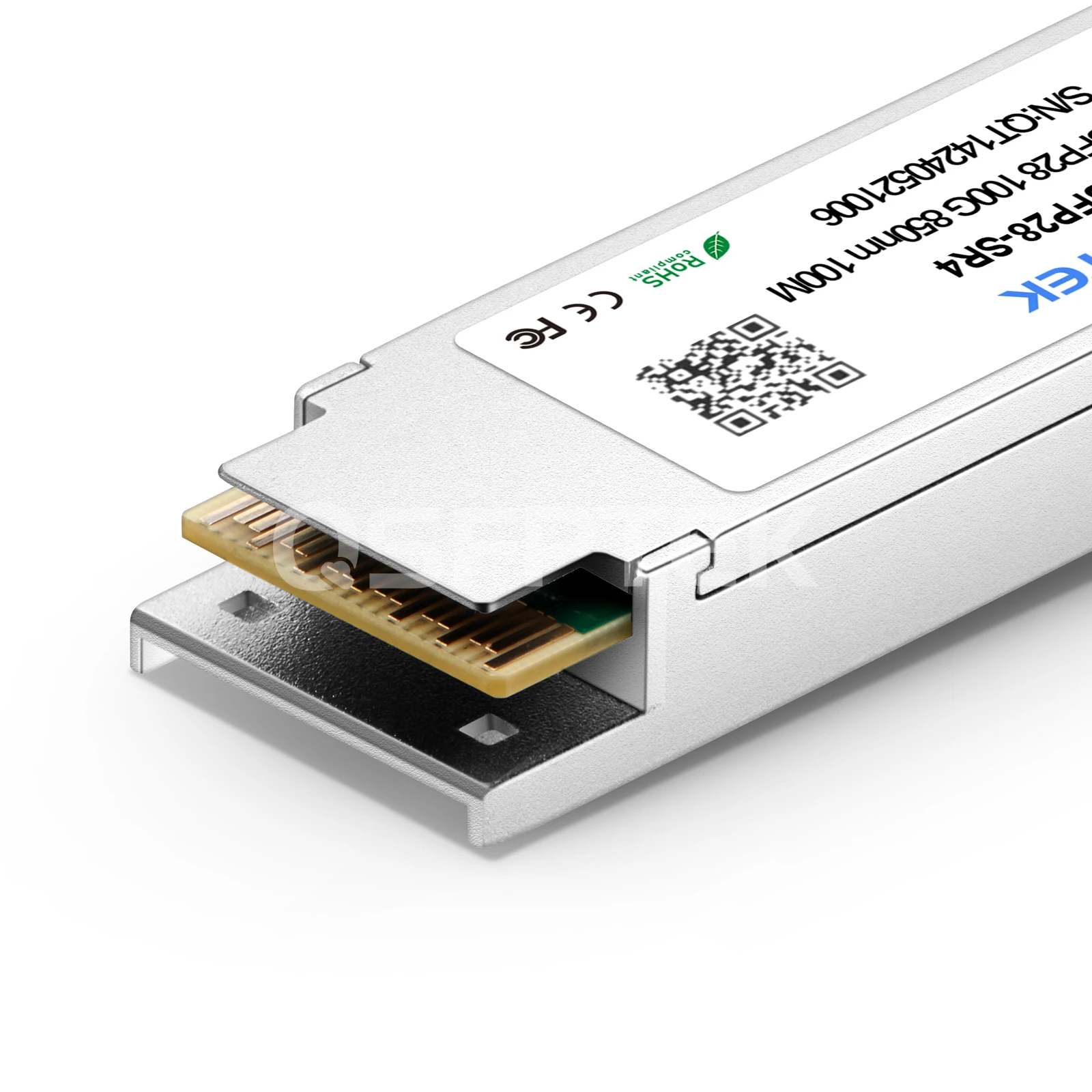

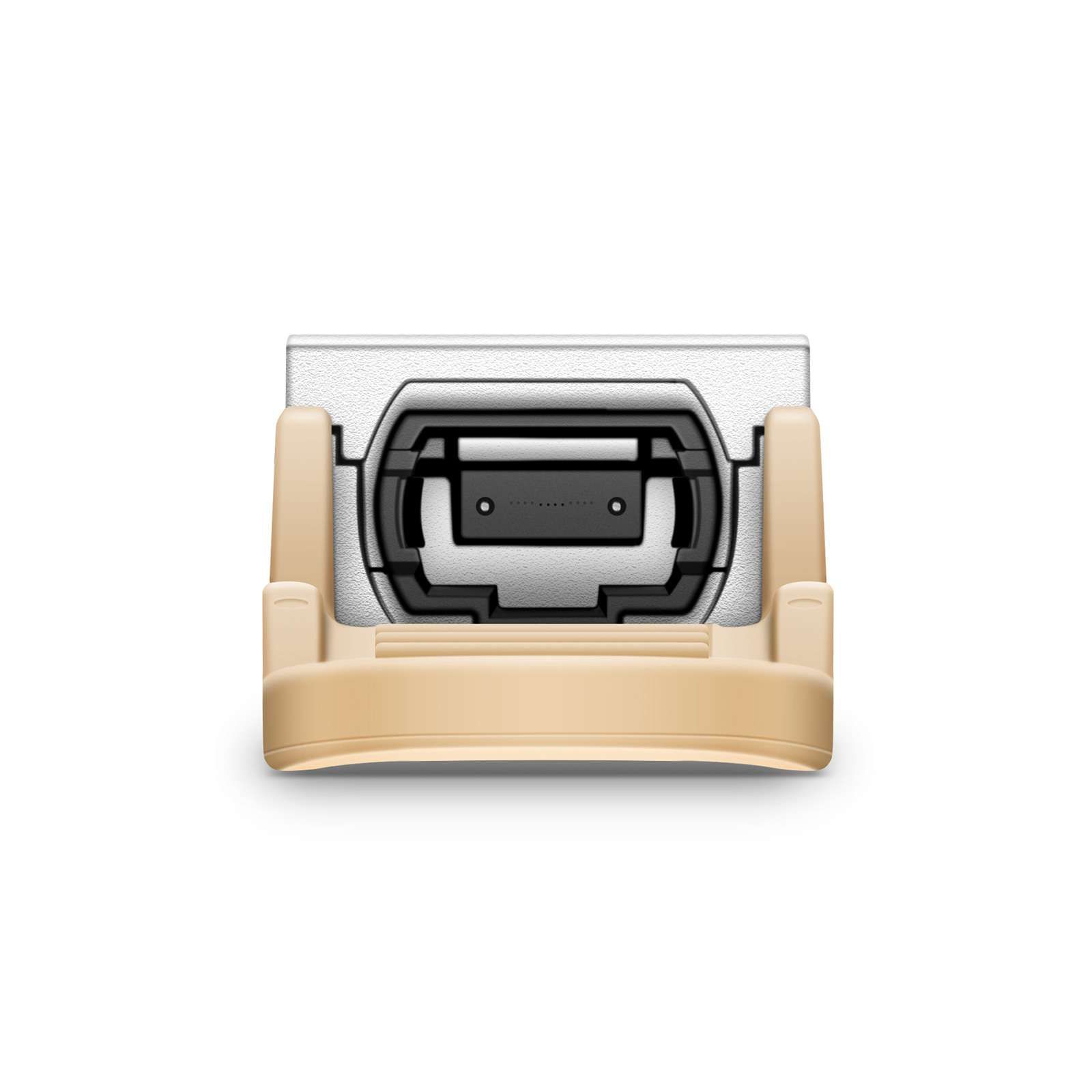

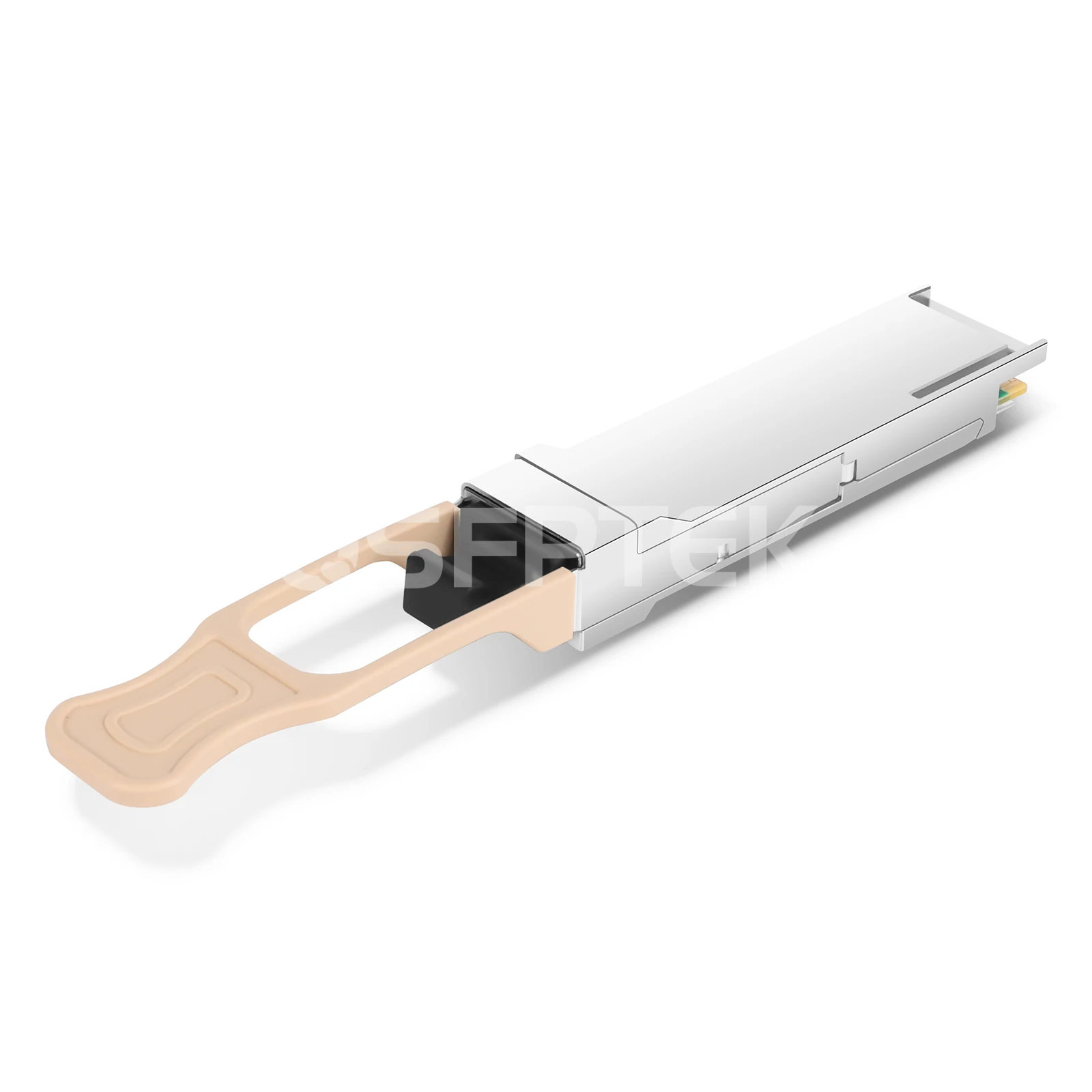

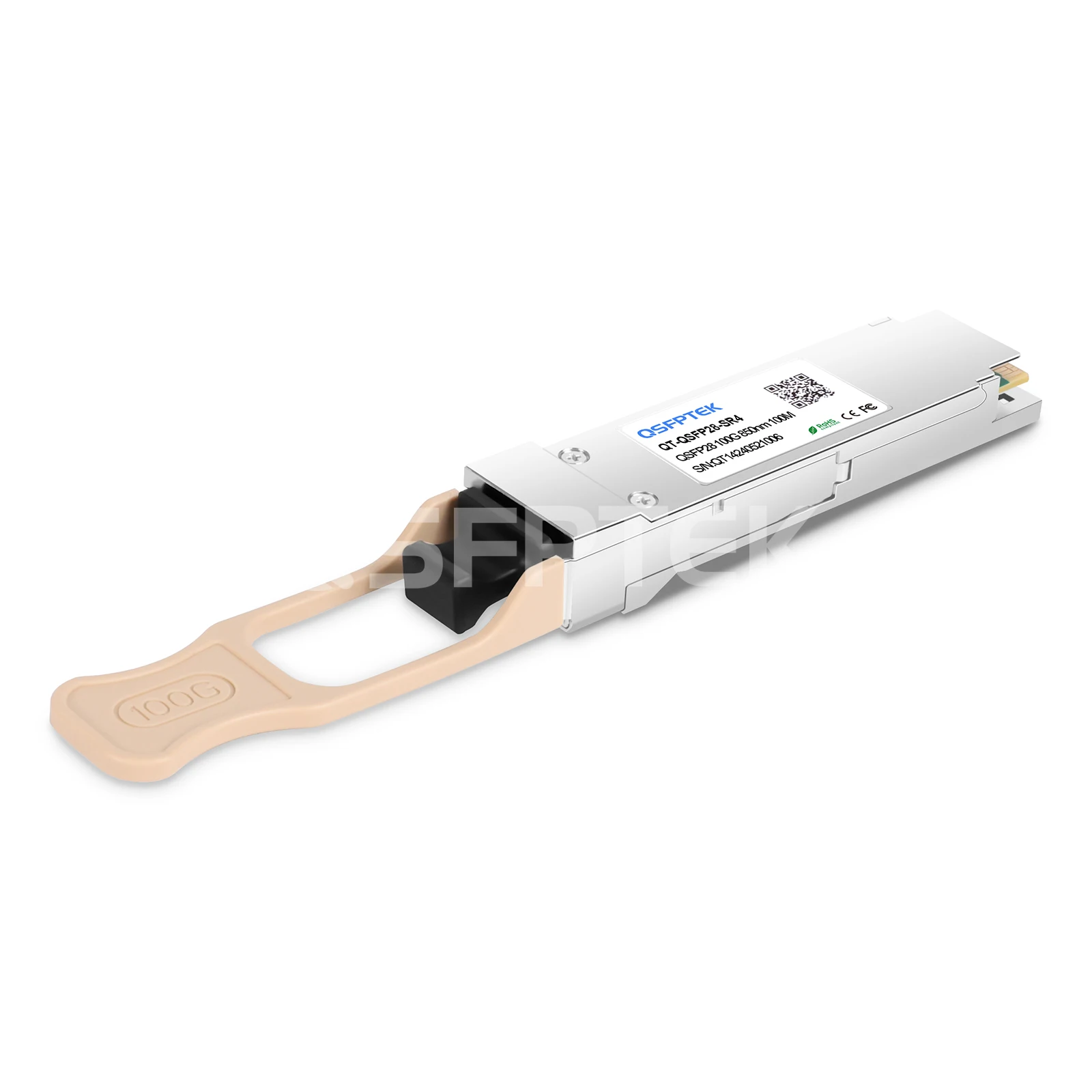

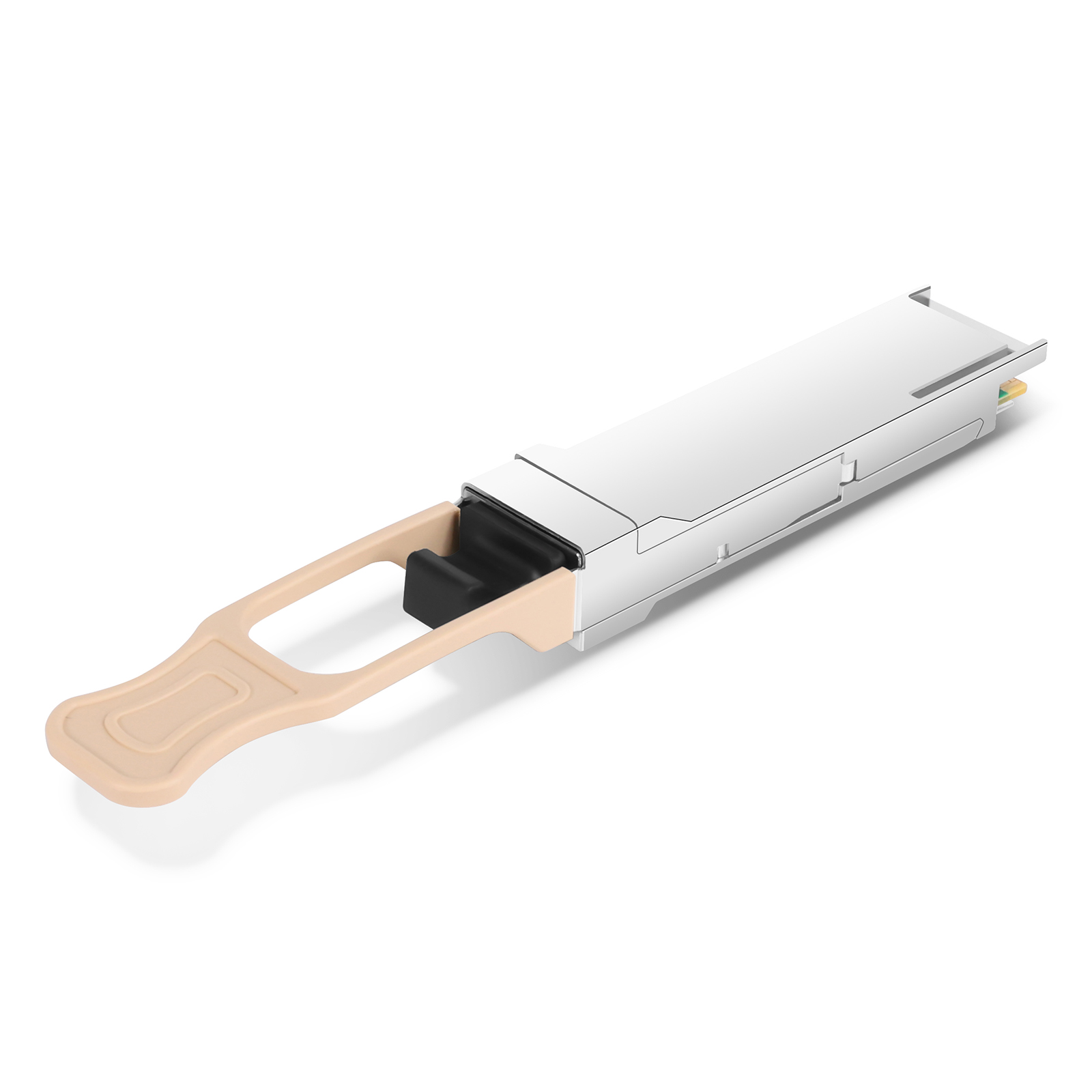

Ciena QSFP28-SR4 Compatible 100GBASE-SR4 QSFP28 850nm 100m DOM MTP/MPO MMF Optical Transceiver Module

Product No :99682
US$ 39.90  US$ 59.90
Transceivers type
3462 in stock

Free Shipping over US$ 79.8

US/EU Warehouses in stock

14-day Return and Refund

;jsessionid=B8FACFF995D89EA2503085FD856726B1
-
+
1. Rate: 100G; Connector: MTP/MPO; with DDM
2. VCSEL+PIN; Low Power Consumption ≤3.5W
3. Applied in Campus Network, Data Center and Enterprise Core Layer
4. Compatible with 100+ Vendors
5. Hot Pluggable QSFP28 MSA Compliant
See more

Specifications

Ciena QSFP28-SR4 Compatible 100GBASE-SR4 QSFP28 850nm 100m DOM MTP/MPO MMF Optical Transceiver Module



The QSFP28-SR4 compatible optical transceiver module is designed with MTP/MPO-12 male connectors, reaching a link up to 100m over OM4 (70m@OM3). QSFPTEK manufactured 100GBASE-SR4 QSFP28 transceiver module is compliant with IEEE 802.3bm, QSFP28 MSA standard. Besides, DDM (digital diagnostics monitoring) function is supported on the 100G fiber optic transceiver to achieve real-time operating parameters monitoring. With these features, this 100G QSFP28 transceiver is widely applied in data centers, campus networks, an enterprise core layer, etc.



Part Number:

QSFP28-100G-SR4

Vendor Name:

QSFPTEK

Form Factor:

QSFP28

Data Rate:

100Gbps

Wavelength:

850nm

Distance:

100m@OM4/70m@OM3

Connector:

MTP/MPO-12 Male

Cable Type:

OM4/OM3 MMF

Transmitter:

VCSEL 850nm

Receiver Type:

PIN

TX Power:

-8.4~+2.4dBm

Receiver Sensitivity:

<-10.3dBm

Power Consumption:

P≤3.5W

Modulation Format:

NRZ

DDM:

Support

Bit Error Ratio (BER):

1.00E-12

Protocols: I

EEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636, CPRI, eCPRI

Warranty:

5 Years

Quality Testing Program
Quality Certifications

Features

  • 1. High Reliablility and Best Price
    Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
  • 2. Wide Application Scenarios
    Fully compatible with almost all Huawei devices. Ideal for data centers, campus network, enterprise core layer, etc.
  • 3. Protocols
    Compliant with IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636, CPRI, eCPRI.
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.

Product details

Various Switch Tests



Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.



transceiver compatibility tests






Tested in The Host Device to Prove Interoperability



Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.








Comprehensive Testing



Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.








100G QSFP28 Model Contrast Table



Part Number

QT-QSFP28-SR4

QT-QSFP28-PSM4

QT-QSFP28-IR4

QT-QSFP28-LR4

QT-QSFP28-CWDM-LR4

QT-QSFP28-ER4

QT-QSFP28-ZR4

DWDM-QSFP28-ZR-XX


Wavelength

850nm

1310nm

1271~1331nm

1310nm

1271~1331nm

1310nm

1310nm

DWDM CH13~60

Max Distance

100m

500m

2km

10km

10km

40km

80km

80km

Cable Type

OM3/OM4 MMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

Connector

MPO/MTP-12

MPO/MTP-12

LC Duplex

LC Duplex

LC Duplex

LC Duplex

LC Duplex

CS Duplex

Tx Power(dBm)

-8.4~2.4

-5~2

-6.5~2.5

-4.3~4.5

-6.5~2.5

-2.9~4.5

2~6.5

-1~4dBm

Rx Sensitivity(dBm)

-10.3

-11.4

-11.5

-10.6

-13

-20.9

-28

-12.5

Max Power Consumption

1.8W

3.5W

3.5W

3.5W

3.5W

4.5W

6W

5W

Source

VCSEL+PIN

DFB+PIN

CWDM DFB+ PIN

EML+PIN

CWDM DFB +PIN

EML+APD

EML+SOA&PIN

EML+APD

Operating Temperature

0~70°C

0~70°C

0~70°C

0~70°C

-40~85°C

0~70°C

0~70°C

-20~85°C

0~70°C

-40~85°C

0~70°C





Questions & Answers

more+
  • What are the main application scenarios of 100G optical modules?
    The primary application of this transceiver is in data centers, Ethernet, and telecommunications settings, serving as a pivotal component for 100G connections within core switches, core routers, and 5G networks.
  • Would you please explain the FEC (Forward Error Correction)?
    FEC (Forward Error Correction) is an error correction method used to identify and rectify a limited number of errors in transmitted data, all without necessitating retransmission. This technique involves appending redundant bits to a bitstream, enhancing the decoder's ability to identify and rectify certain transmission errors, and eliminating the need for retransmission. Activation of this function is dependent on the configuration of the transmission device.
  • What is the Packaging Technology of the 100g lr4?
    BOX Packaging
