Juniper Networks EX-SFP-10GE-LR Compatible 10GBASE-LR SFP+ 1310nm 10km DDM LC SMF Transceiver

Product No :21071

US$ 14.90 ~~US$ 15.90~~

Specifications

Juniper Networks EX-SFP-10GE-LR Compatible 10GBASE-LR SFP+ Transceiver Module (SMF, 1310nm, 10km, LC, DOM)

The Juniper Networks EX-SFP-10GE-LR compatible SFP+ optical transceiver is equipped with an LC duplex connector, reaching a link up to 10km over OS2. QSFPTEK manufactured 10GBASE-LR SFP+ transceiver module is compliant with SFP+ MSA, IEEE 802.3ae, SFF-8472, SFF-8431 and SFF-8432. Besides, DDM (digital diagnostics monitoring) function is supported on the 10G fiber optic transceiver to achieve real-time operating parameters monitoring. This 10G SFP+ transceiver is applied in various application scenarios such as data centers, campus networks. It's also fully compatible with almost all Cisco devices.

Model Name:	SFP-10G-LR	Vendor Name:	QSFPTEK
Form Factor:	SFP+	Data Rate:	10Gbps
Wavelength:	1310nm	Distance:	10km@G.652
Connector:	LC Duplex	Cable Type:	OS2 SMF
Transmitterr Type:	DFB	Receiver Type:	PIN
TX Power:	-6.5~-0.5dBm	Receiver Sensitivity:	<-12.6dBm
Power Consumption:	<0.8W	Modulation Format:	NRZ
DDM:	Support	Bit Error Ratio (BER):	1.00E-12
Protocols:	IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432	Warranty:	3 Years

Quality Certifications

Features

4. Quality Certifications

Backed by CE, FCC, ROSH, ISO9001.
3. Protocols

Compliant with IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432.
2. Wide Application Scenarios

Ideal for data center, campus network and 40G-10G Break-out.
1. High Reliablility and Best Price

Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.

Applications

Data Center and Campus network Solution for 10G Gigabit Ethernet Switches

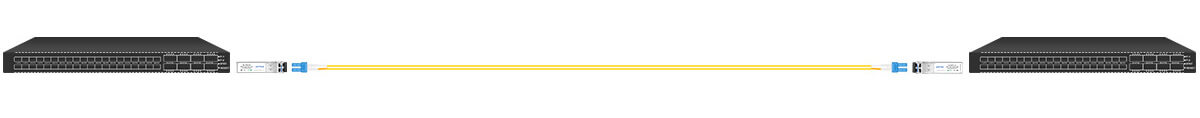

The 10GBASE-LR Optical Module Connectivity Testing on Switches

10G Connection for DataCenter, Campus Networks; Cost-effective choice for SMB users.

Product details

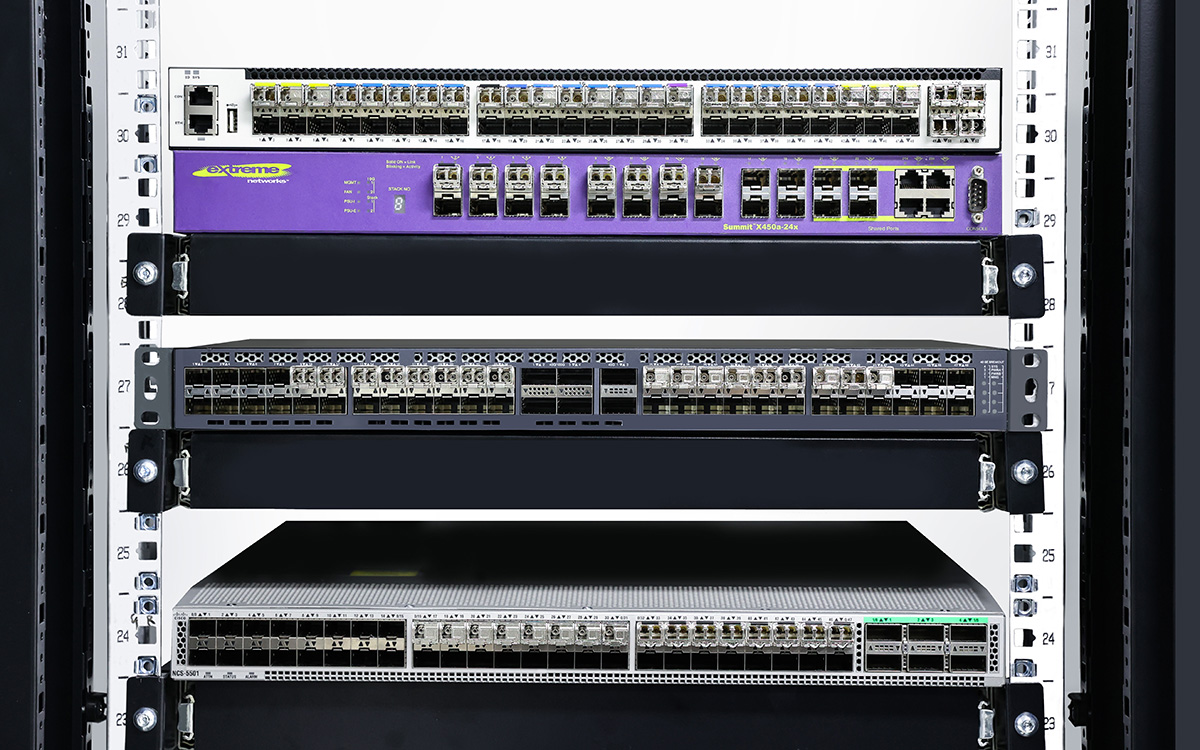

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.

transceiver compatibility tests

Tested in The Host Device to Prove Interoperability

Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.

Comprehensive Testing

Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.

10G SFP+ Model Contrast Table

Part Number	QT-SFP+-T QT-SFP+-IT	QT-SFP+-T-80	QT-SFP+-SR	QT-SFP+-IR	QT-SFP+-LR	QT-SFP+-LH	QT-SFP+-ER	QT-SFP+-ZR	QT-SFP+-ZR+
Wavelength	—	—	850nm	1310nm	1310nm	1310nm	1550nm	1550nm	1550nm
Max Distance	30m@Cat6a/7	80m@Cat6a/7	300m	2km	10km	20km	40km	80km	100km
Cable Type	Copper	Copper	OM3/OM4 MMF	OS2 SMF	OS2 SMF	OS2 SMF	OS2 SMF	OS2 SMF	OS2 SMF
Connector	RJ45	RJ45	LC Duplex	LC Duplex	LC Duplex	LC Duplex	LC Duplex	LC Duplex	LC Duplex
Tx Power(dBm)	—	—	-6.5~-0.5	-8.2 ~ -0.5	-6.5~-0.5	-6~-1	-2~4	0 ~ 5	1 ~ 5
Rx Sensitivity(dBm)	—	—	-11.1	-12.6	-12.6	-14.4	-15.8	-24	-25
Power Consumption	<2.5W	<2.5W	<0.8W	<0.8W	<0.8W	< 1W	<1.5W	<1.5W	<1.5W
Source	—	—	VCSEL + PIN	FP + PIN	DFB + PIN	DFB + PIN	EML + PIN	EML + APD	EML + APD
Operating Temperature	0 to 70°C -40 to 85°C (IND)	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C
