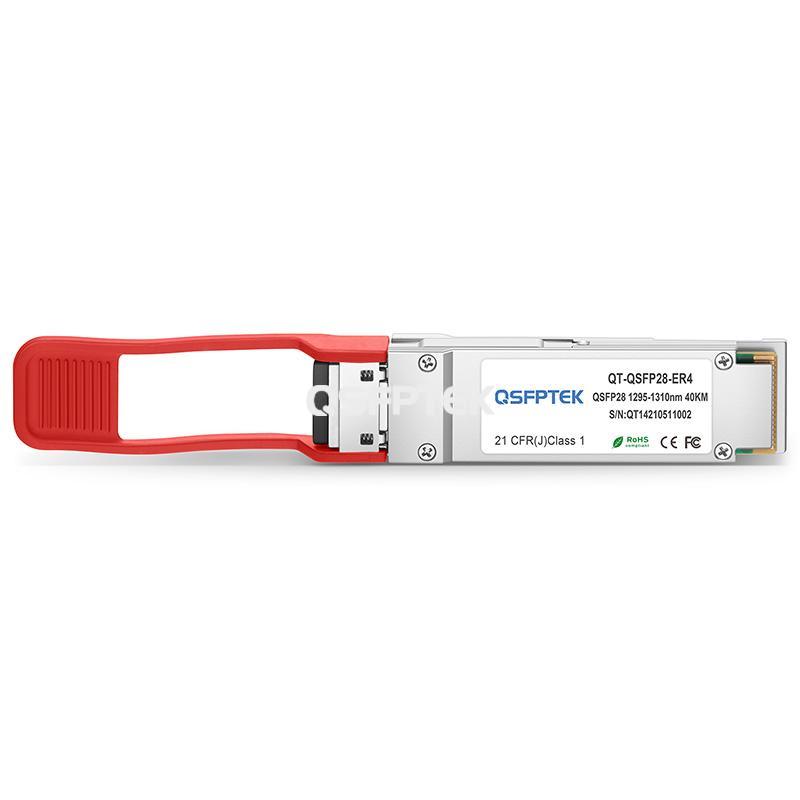

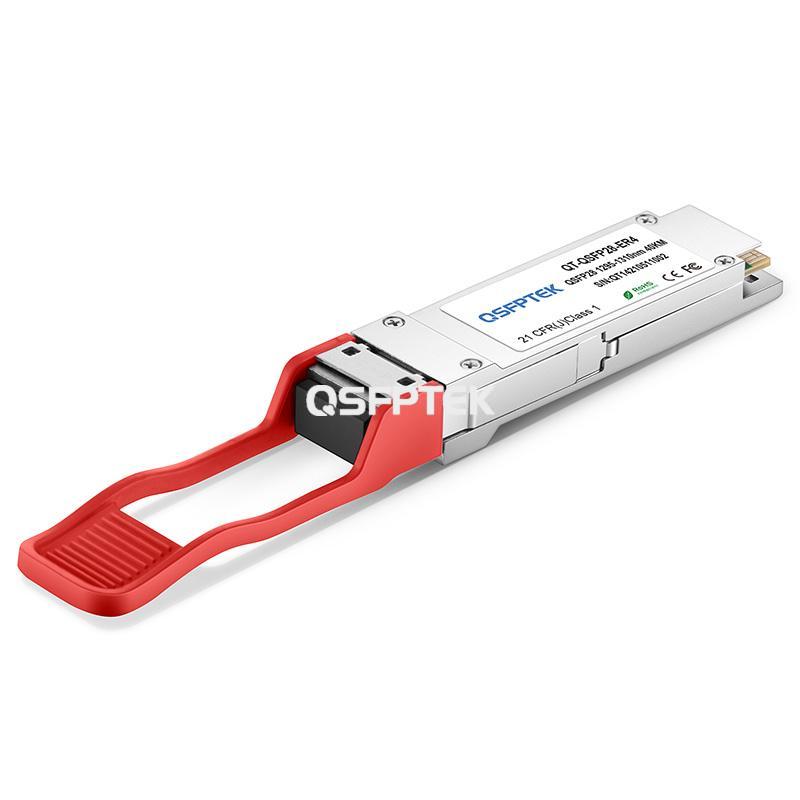

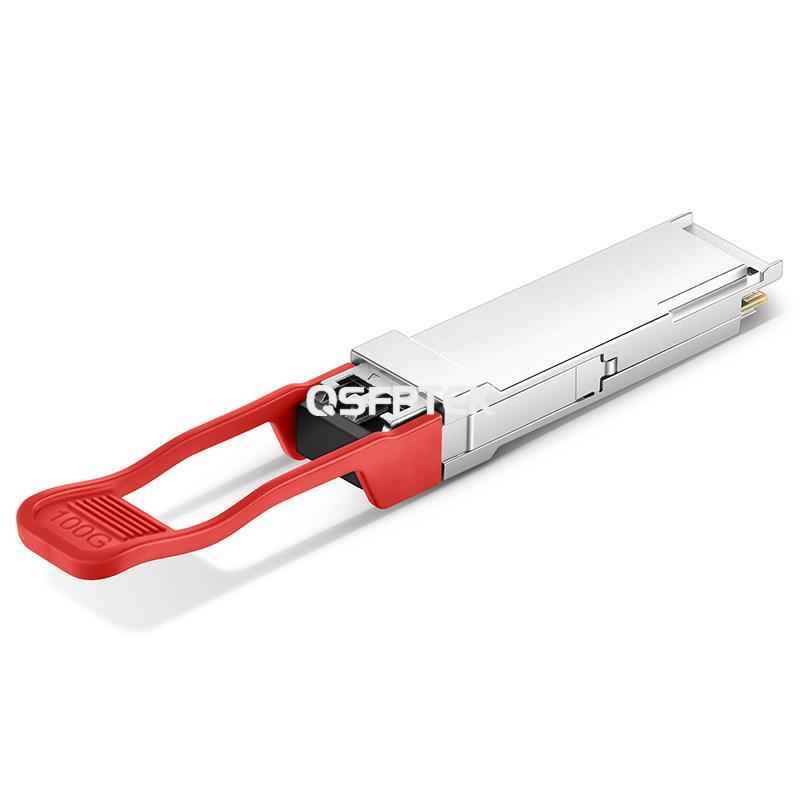

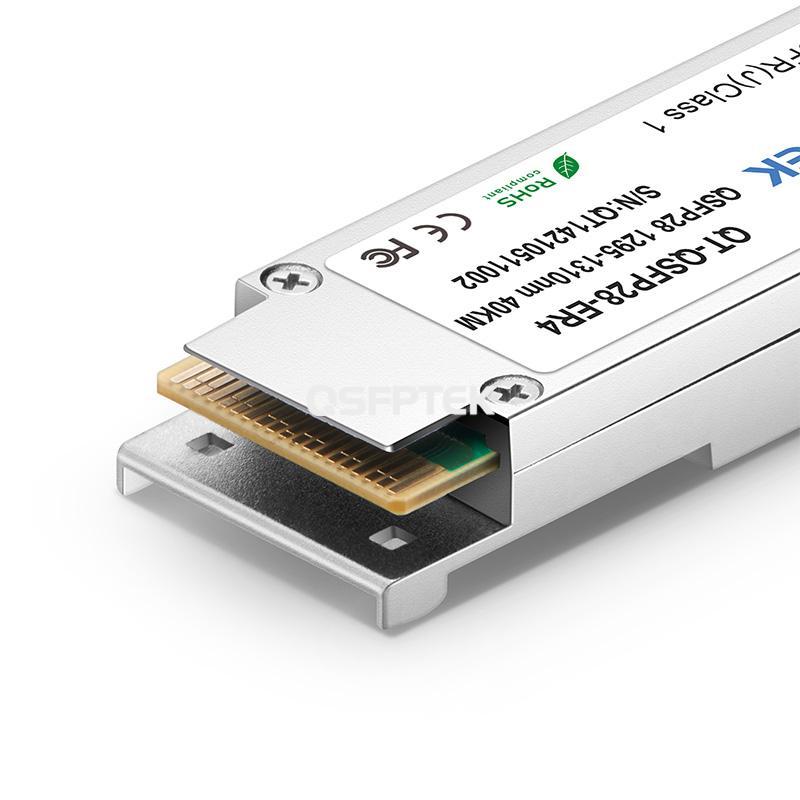

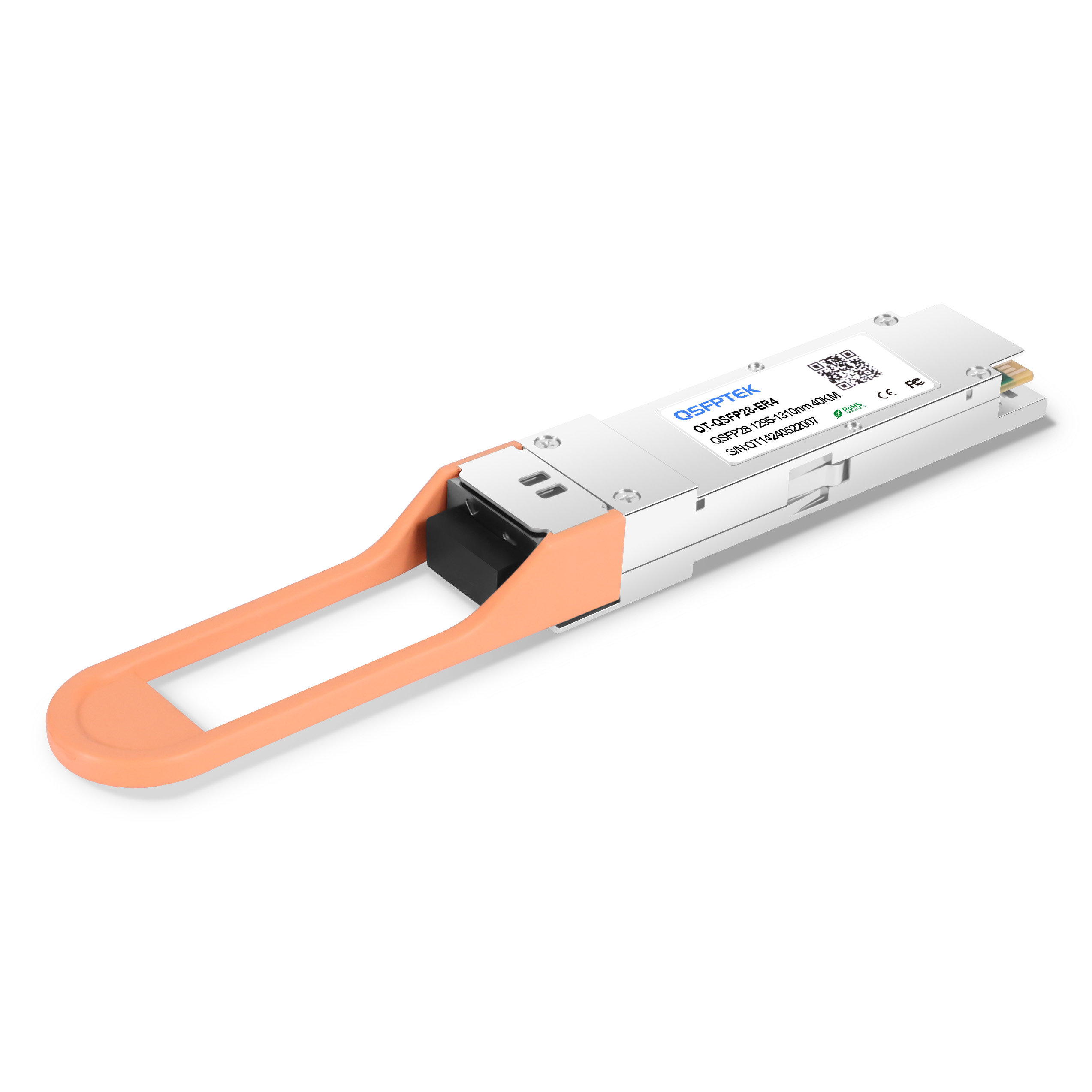

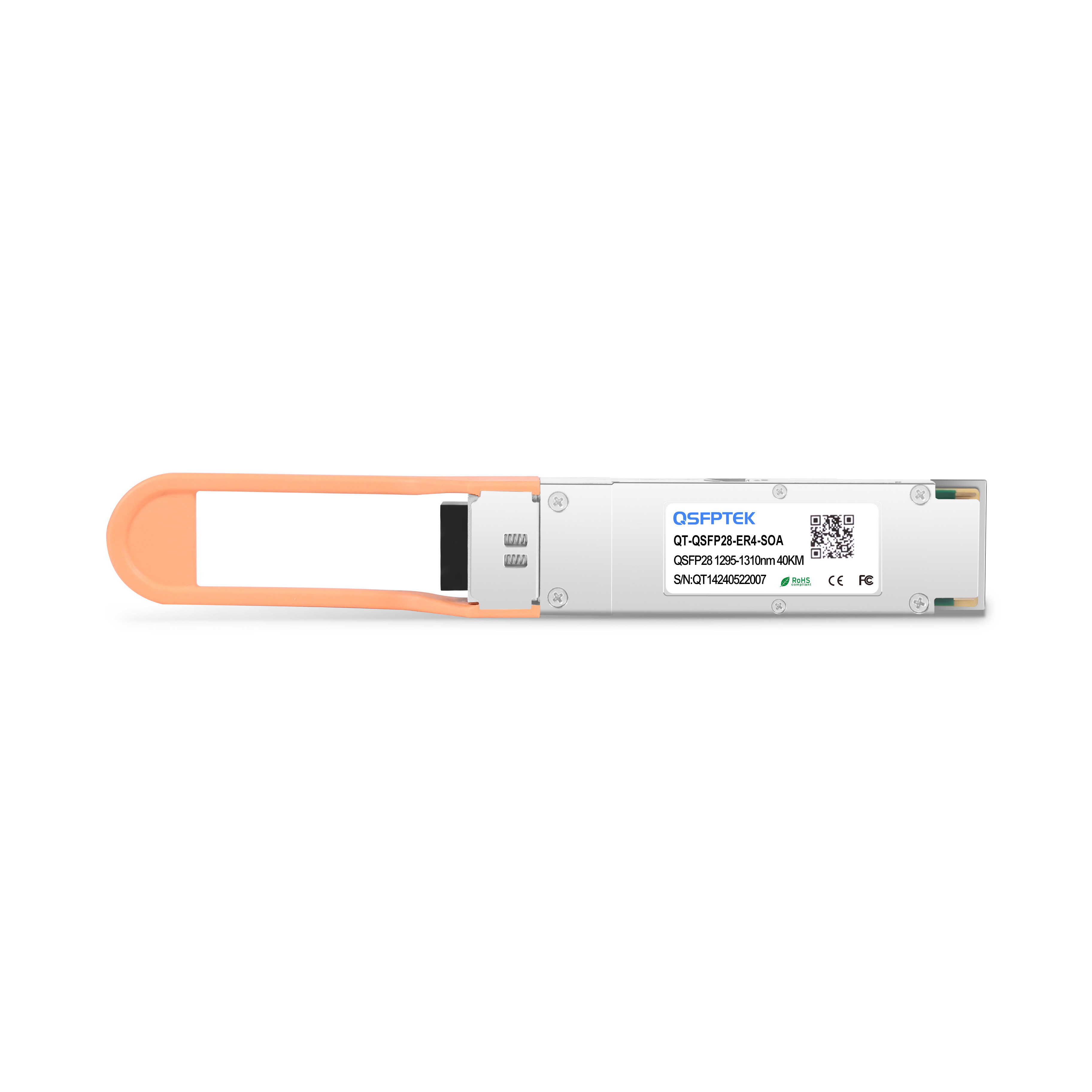

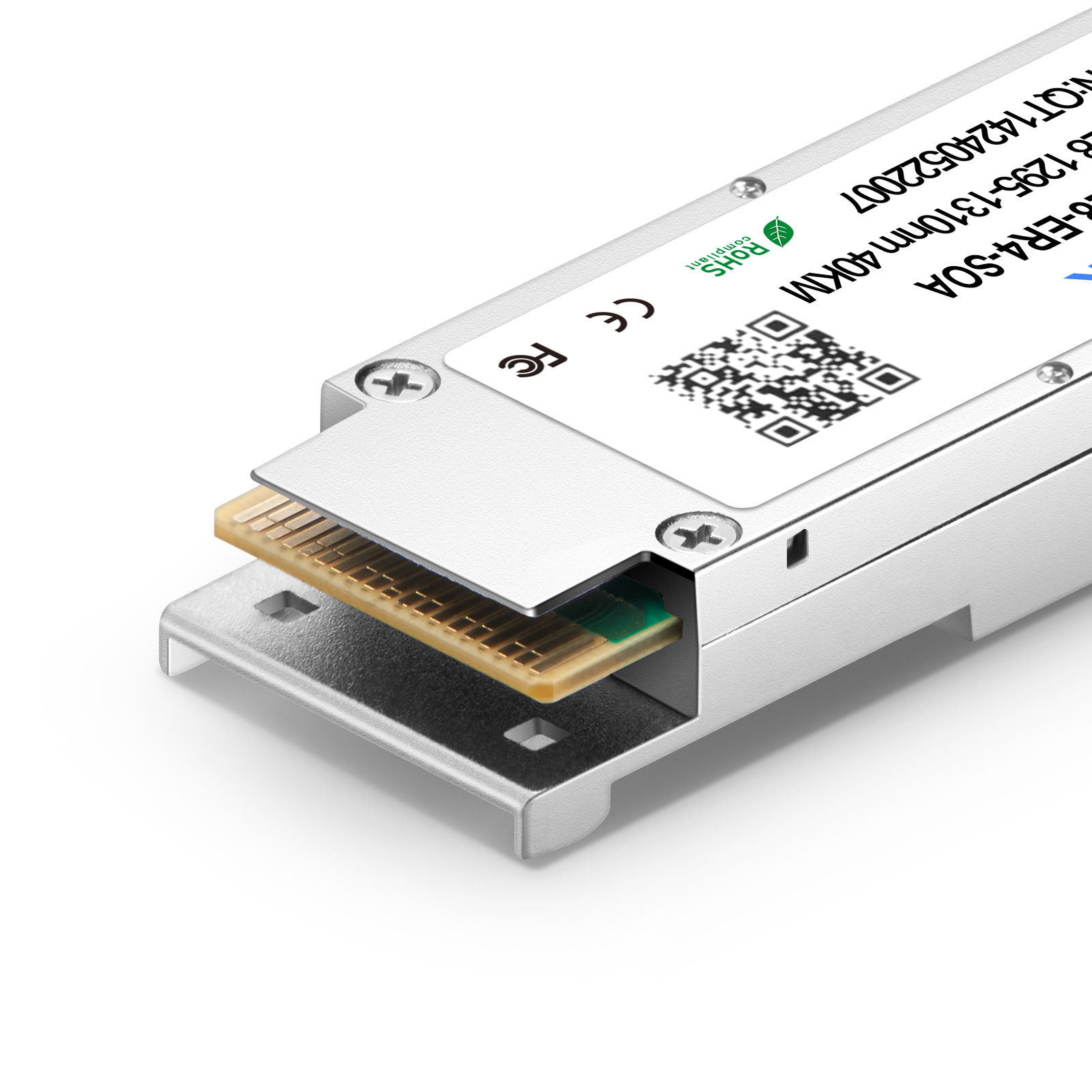

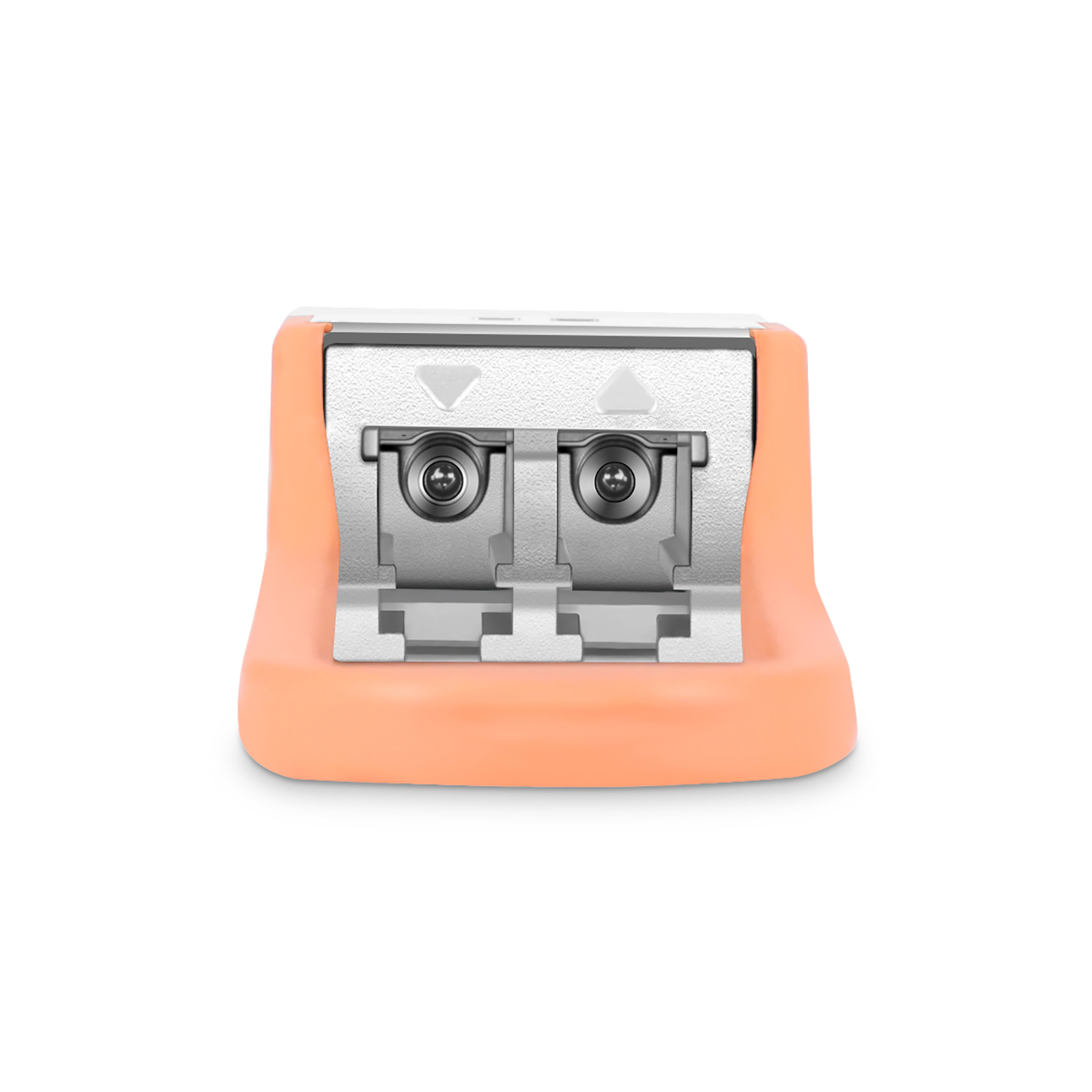

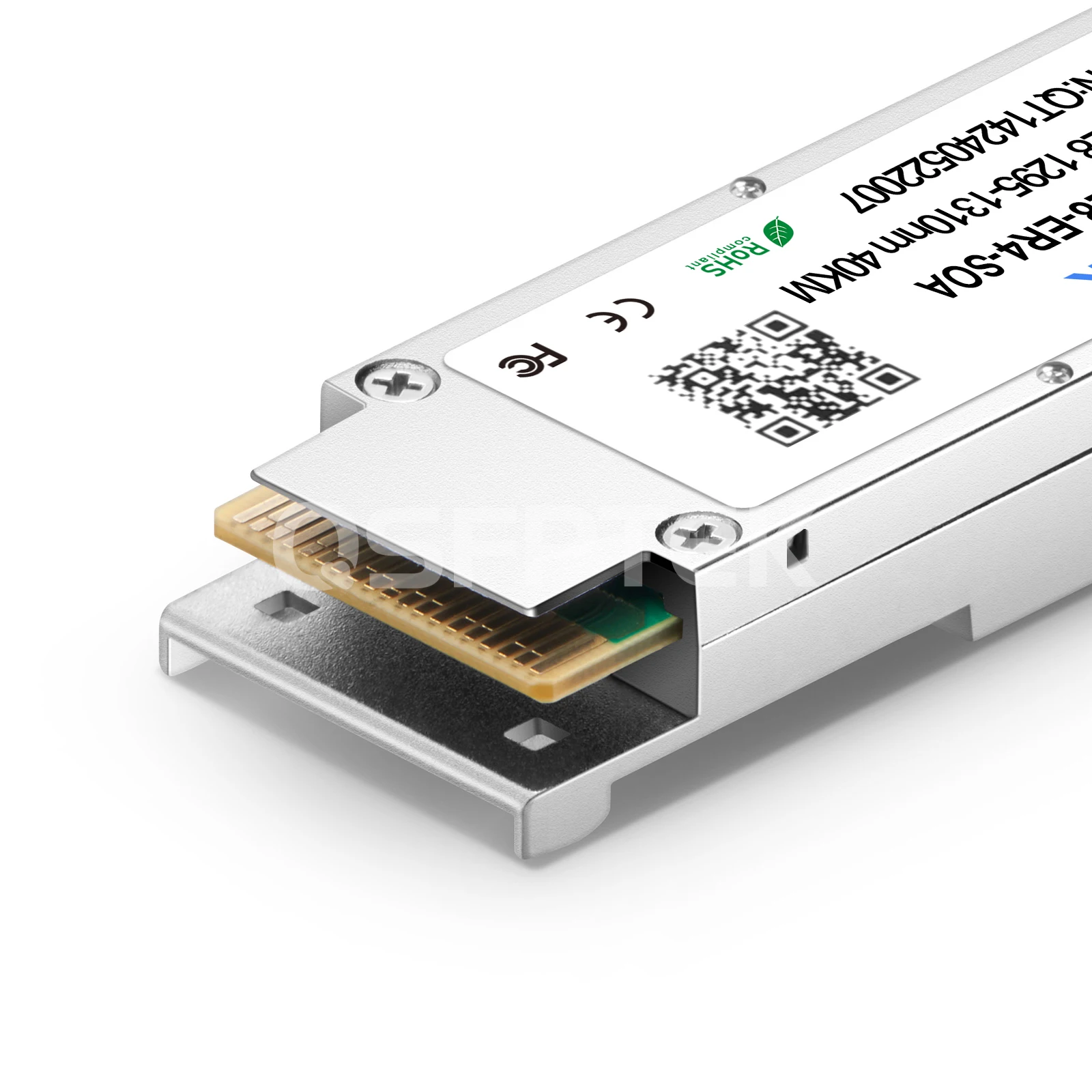

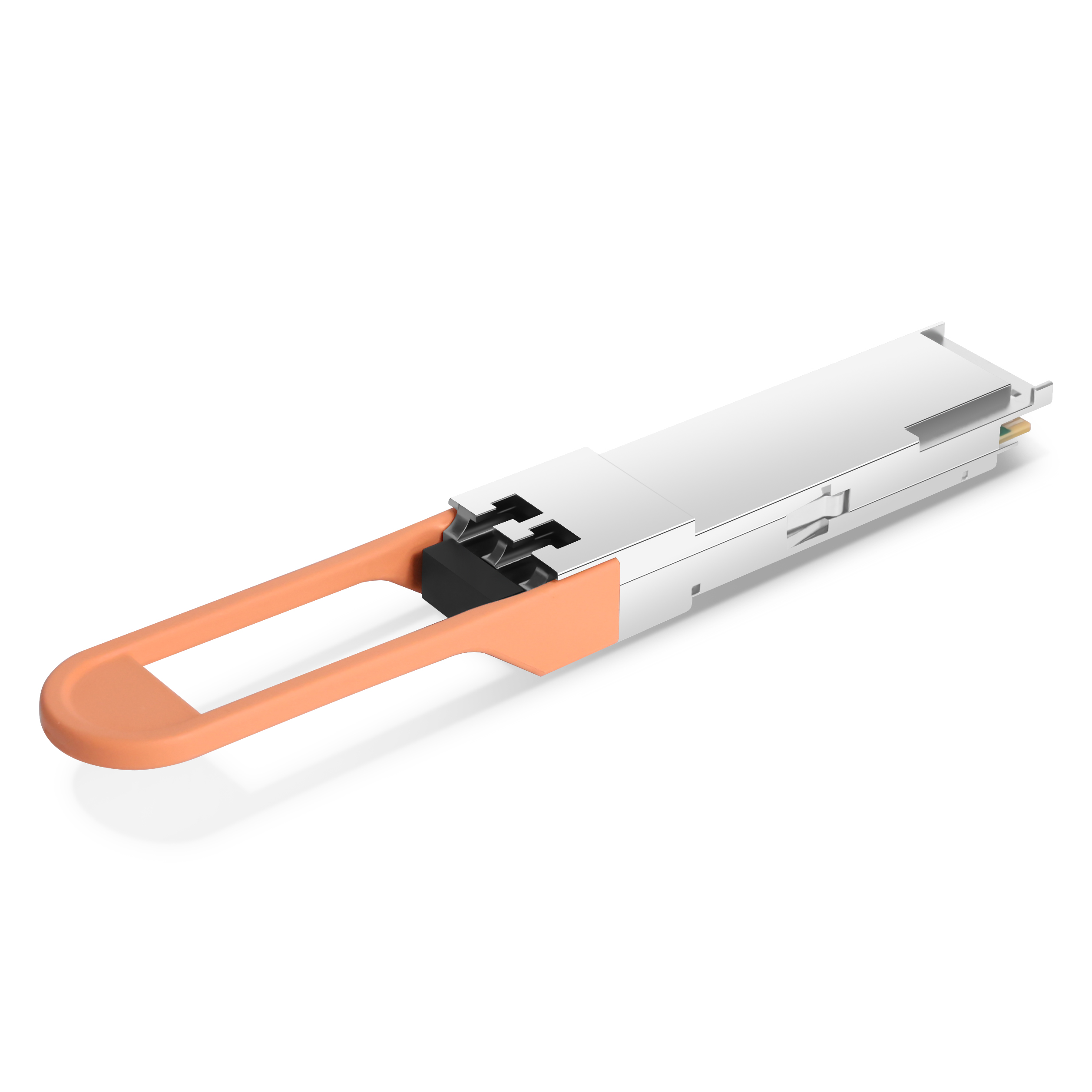

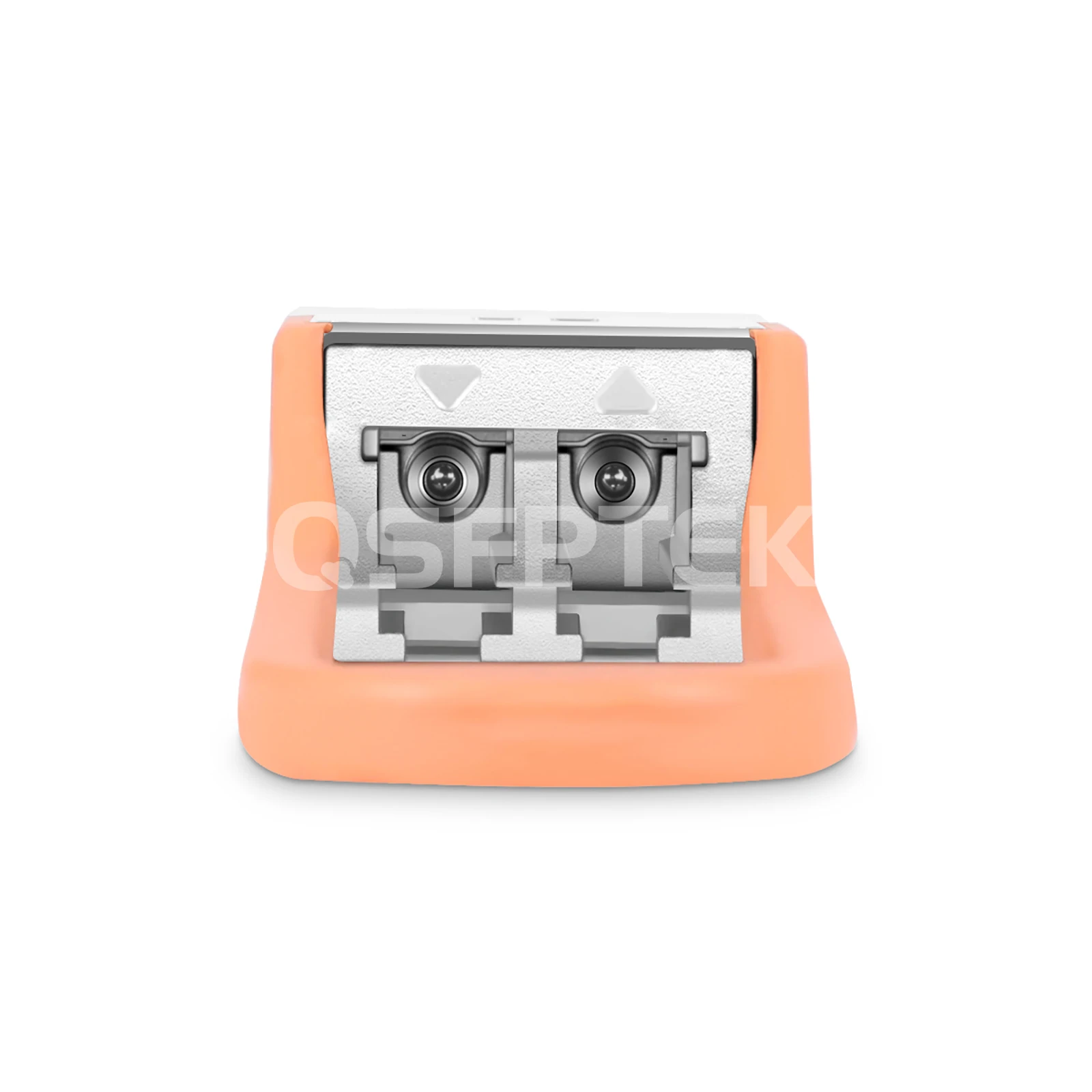

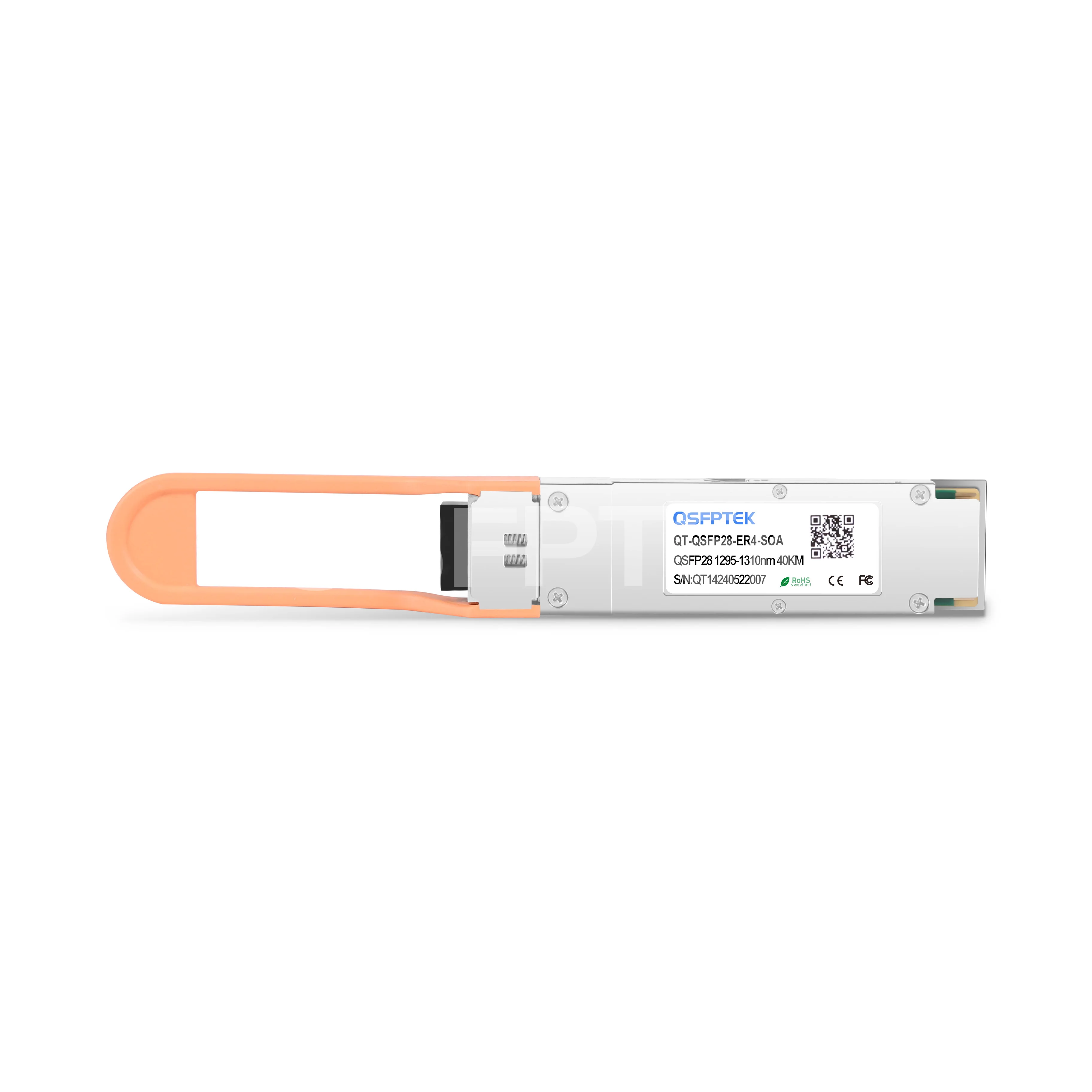

Huawei 02313HLU Compatible 100GBASE-ER4 QSFP28 1310nm 40km (Rx Type SOA) LC SMF Optical Transceiver Module

Product No :59059
US$ 1043.90  US$ 1799.00
3756 in real-time stock, 18Jul, 2024

Free Shipping over US$ 79.8

US/EU Warehouses in stock

14-day Return and Refund

;jsessionid=002CA3F1847AE451F4497EC32E170DC8
-
+
1. Rate: 100G; Connector: LC; with DDM
2. Tx: EML / Rx: SOA+PIN; Low Power Consumption ≤5W
3. Applied in Campus Network, Data Center and Enterprise Core Layer
4. Compatible with 200+ Vendors
5. Hot Pluggable QSFP28 MSA Compliant
See more

Specifications

Huawei 02313HLU Compatible 100GBASE-ER4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 40km, LC, DDM)



The Huawei 02313HLU compatible optical transceiver module is designed with duplex LC connectors, reaching a link up to 40km over single-mode fiber(OS2). QSFPTEK manufactured 100GBASE-ER4 QSFP28 transceiver module is compliant with IEEE 802.3ba 100GBASE-ER4 Lite, QSFP28 MSA Compliant standard. Besides, DDM (digital diagnostics monitoring) function is supported on the 100G fiber optic transceiver to achieve real-time operating parameters monitoring. With these features, this 100G QSFP28 transceiver is widely applied in 100G telecom connections, DCI, Metro network, and high-performance computing networks.



Part Number:

QSFP28-100G-ER4

Vendor Name:

QSFPTEK

Form Factor:

QSFP28

Data Rate:

100Gbps

Wavelength:

1295~1310nm

Distance:

 40km

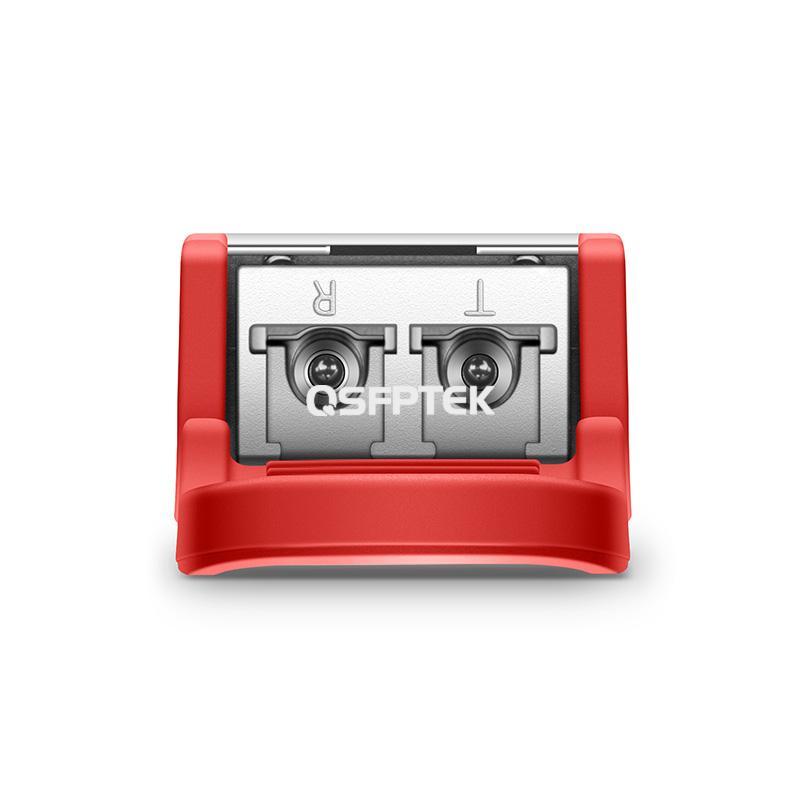

Connector:

Duplex LC

Cable Type:

OS2 SMF

Transmitter:

 4x EML

Receiver Type:

SOA+PIN

TX Power:

-2.9~4.5dBm

Receiver Sensitivity:

<-20.9dBm

Power Consumption:

5W

Modulation Format:

NRZ

DDM:

Support

Bit Error Ratio (BER):

1.00E-12

Protocols:

IEEE 802.3ba 100GBASE-ER4 Lite, QSFP28 MSA

Warranty:

5 Years

Quality Testing Program
Quality Certifications

Features

  • 1. High Reliablility and Best Price
    Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
  • 2. Wide Application Scenarios
    Fully compatible with almost all Huawei devices. Ideal for 100G telecom connections, data centers, DCI and Metro network Application.
  • 3. Protocols
    Compliant with IEEE 802.3ba, IEEE 802.3bm, SFF-8665, SFF-8636, 100G CWDM4 MSA, QSFP28 MSA.
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.

Product details

Various Switch Tests



Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.

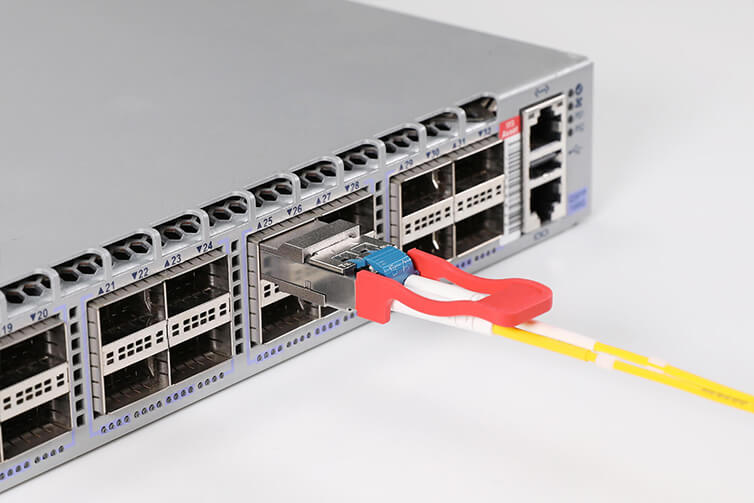

Tested in The Host Device to Prove Interoperability



Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.








Comprehensive Testing



Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.








100G QSFP28 Model Contrast Table



Part Number

QT-QSFP28-SR4

QT-QSFP28-PSM4

QT-QSFP28-IR4

QT-QSFP28-LR4

QT-QSFP28-CWDM-LR4

QT-QSFP28-ER4

QT-QSFP28-ZR4

DWDM-QSFP28-ZR-XX


Wavelength

850nm

1310nm

1271~1331nm

1310nm

1271~1331nm
