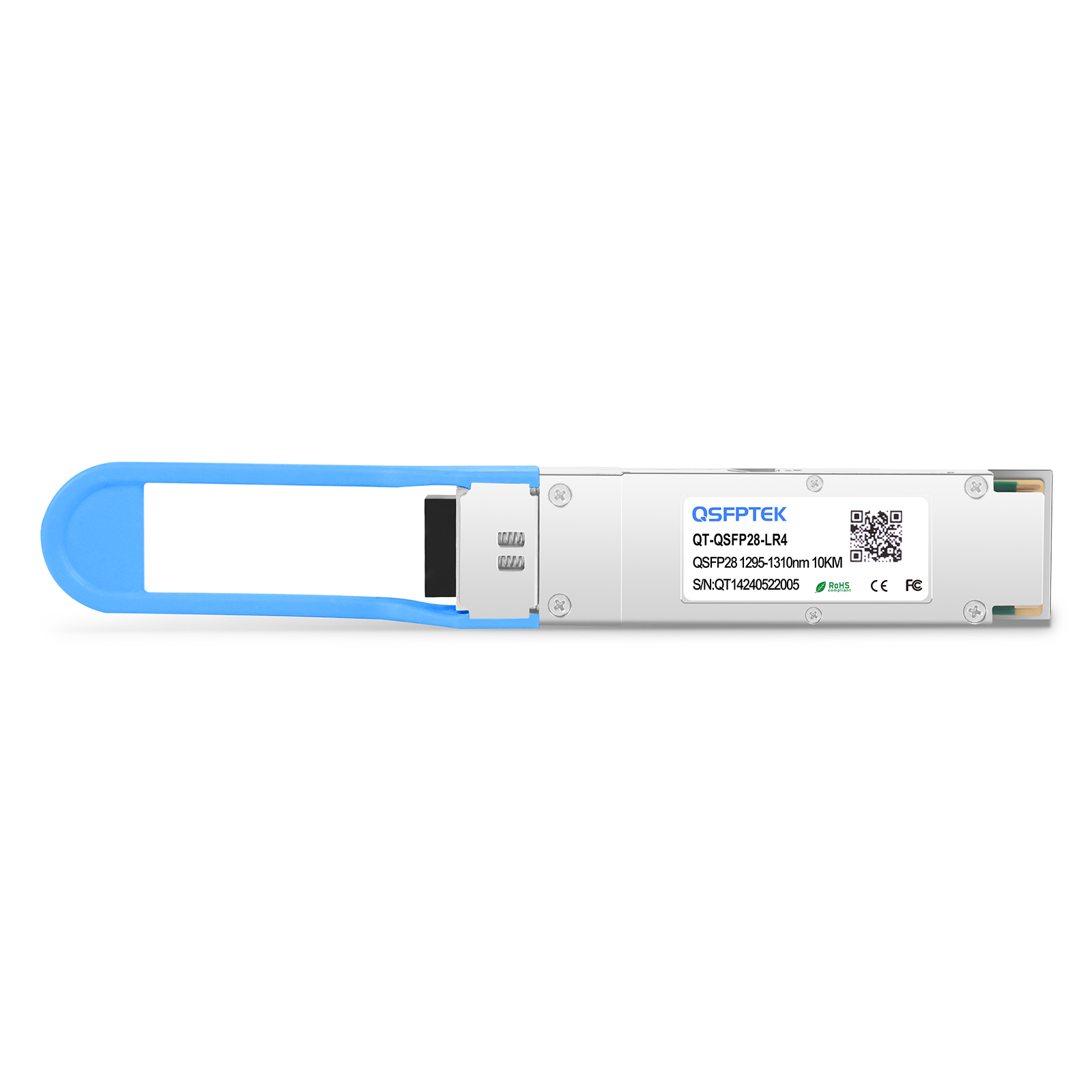

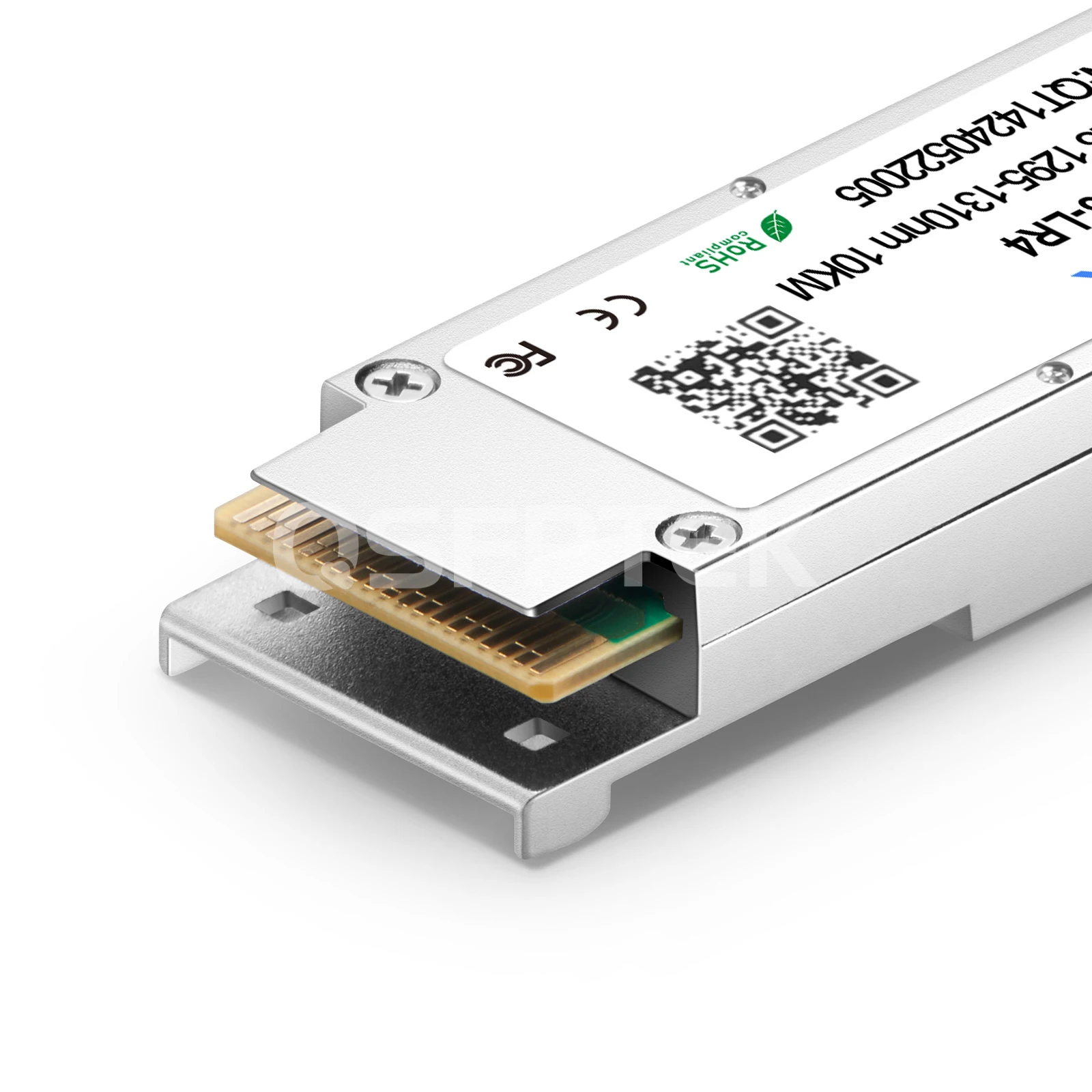

Huawei OSN010N24 Compatible 100GBASE-4WDM-10 QSFP28 1310nm 10km Optical Transceiver Module

Product No :101758
US$ 88.90  US$ 239.00
950 in real-time stock, 11Dec, 2024

Free Shipping over US$ 79.8

US/EU/Global warehouses in stock

30-day Return and Refund

;jsessionid=83E00A914507D2C2F253E29165CF2F58
-
+
1. Rate: 100G; Connector: LC; with DDM
2. CWDM DFB+PIN; Low Power Consumption ≤3.5W
3. Applied in Campus Network, Data Center and Enterprise Core Layer
4. Compatible with 200+ Vendors
5. Hot Pluggable QSFP28 MSA Compliant
See more

Specifications

Huawei OSN010N24  Compatible 100GBASE-4WDM-10 QSFP28 Optical Transceiver Module (SMF, 1310nm, 10km, LC, DDM)



The Huawei OSN010N24  compatible optical transceiver module is designed with duplex LC connectors, reaching a link up to 10km over single-mode fiber(OS2). QSFPTEK manufactured 100GBASE-4WDM-10 QSFP28 transceiver module is compliant with IEEE 802.3bm, 100G QSFP28 CWDM4 MSA standard. Besides, DDM (digital diagnostics monitoring) function is supported on the 100G fiber optic transceiver to achieve real-time operating parameters monitoring. With these features, this 100G QSFP28 transceiver is widely applied in data centers, campus networks, the enterprise core layer, etc.



Model Name QT-QSFP28-CWDM-LR4 Vendor Name QSFPTEK
Form Factor QSFP28 Data Rate 103.125 Gbps (4x 25.78Gbps)
Wavelength 1295-1310nm Distance 10km
Connector Duplex LC Cable Type OS2 SMF
Transmitter Type 4x CWDM DML (DFB) Receiver Type PIN
TX Power -6.5~2.5dBm Receiver Sensitivity <-11.5dBm
Power Consumption ≤3.5W Modulation Format NRZ
DDM Support Bit Error Ratio (BER) 5E-5
Protocols QSFP28 MSA Compliant, SFF-8636 Warranty 5 Years



Quality Testing Program
Quality Certifications

Features

  • 1. High Reliablility and Best Price
    Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
  • 2. Wide Application Scenarios
    Fully compatible with almost all niper devices. Ideal for data centers, campus network, enterprise core layer, etc.
  • 3. Protocols
    Compliant with IEEE 802.3ba, IEEE 802.3bm, SFF-8665, SFF-8636, 100G CWDM4 MSA, QSFP28 MSA.
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.

Product details

Various Switch Tests



Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.



QSPFTEK LAB All Brands Switches Show






Tested in The Host Device to Prove Interoperability



Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.



QSFPTEK Test Rack






Comprehensive Testing



Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.



QSFPTEK Test Devices






100G QSFP28 Model Contrast Table



Part Number

QT-QSFP28-SR4

QT-QSFP28-PSM4

QT-QSFP28-IR4

QT-QSFP28-LR4

QT-QSFP28-CWDM-LR4

QT-QSFP28-ER4 (Rx SOA)

QT-QSFP28-ZR4

DWDM-QSFP28-ZR-XX


Wavelength

850nm

1310nm

1271~1331nm

1310nm

1271~1331nm

1310nm

1310nm

DWDM CH13~60

Max Distance

100m

500m

2km

10km

10km

40km

80km

80km

Cable Type

OM3/OM4 MMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

OS2 SMF

Connector

MPO/MTP-12

MPO/MTP-12

LC Duplex

LC Duplex

LC Duplex

LC Duplex

LC Duplex

CS Duplex

Tx Power(dBm)

-8.4~+2.4

-9.4~+2

-6.5~+2.5

-4.3~+4.5

-6.5~+2.5

-2.9~+4.5

+2~+7

-1~+4

Rx Sensitivity(dBm)

-10.3

-12.66

-11.5

-10.6

-11.5

-20.9

-27

-12.5

Max Power Consumption

3.5W

3.5W

3.5W

4W

3.5W

4.5W

5.5W

5W

Source

VCSEL+PIN

DFB+PIN

CWDM DFB+ PIN

EML+PIN

CWDM DFB +PIN

4x EML+SOA+PIN

EML+SOA+PIN

EML+APD

Operating Temperature

0~70°C

0~70°C

0~70°C

0~70°C

-40~85°C

0~70°C

0~70°C

-20~85°C

0~70°C

-40~85°C

0~70°C



Questions & Answers

Customer Reviews

Write a Review
Sign in to write a review
Write a Review

5 stars

205 Reviews

4 stars

8 Reviews

3 stars

0 Reviews

2 stars

0 Reviews

1 stars

0 Reviews

Read reviews that mention

Resources

  • PDF Document
    QT-QSFP28-CWDM-LR4 Datasheet.pdf
  • PDF Document
    Transceiver Module User Guide.pdf
Contact us
Write a Review
Huawei OSN010N24 Compatible 100GBASE-4WDM-10 QSFP28 1310nm 10km Optical Transceiver Module

Compatible Huawei

Transceivers type OSN010N24

* Review
0/1000
Allow files type of JPG, PNG, MP4. Maximum file size: 5MB

Maximum size: 5MB

Satisfaction
Customer Gallery
View All Customer Gallery

Mark

2023-12-15
This product works well with my switch, and I plan to buy some DWDM transceivers from QT. Excellent value fo ct works well with my switch, and I plan to buy some DWDM transceivers from QT. Excellent valur money!

Verified Purchase

Helpful

8

Sign in to vote
Added to Cart
Huawei OSN010N24 Compatible 100GBASE-4WDM-10 QSFP28 1310nm 10km Optical Transceiver Module
US$ 88.90
Compatible
Huawei
Transceivers type
OSN010N24
Quantity
Subtotal
View Cart
Check Out
Continue shopping

Confirmation

Successfully added shopping cart

Bulk Order Quotes
Huawei OSN010N24 Compatible 100GBASE-4WDM-10 QSFP28 1310nm 10km Optical Transceiver Module ;jsessionid=83E00A914507D2C2F253E29165CF2F58

Compatible Huawei ;jsessionid=83E00A914507D2C2F253E29165CF2F58

Transceivers type OSN010N24 ;jsessionid=83E00A914507D2C2F253E29165CF2F58

  • Qty:

  • Name:

  • E-mail:

  • Country
